Universal EMC Device

以太网与车载总线100BASE-T1,CAN/CAN-FD, LIN和FlexRay自动转换并通过光信号传输

Categories: ,
Description描述

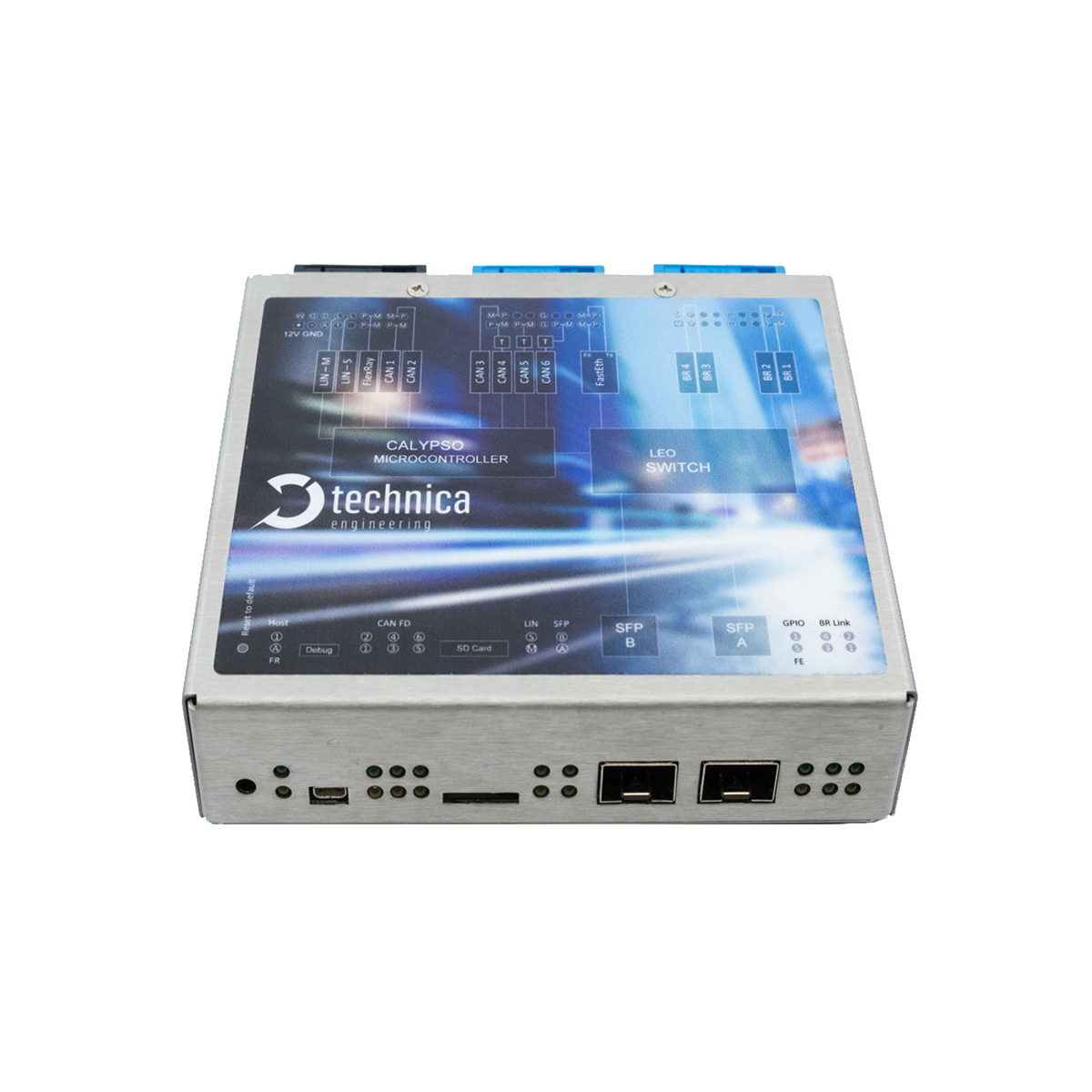

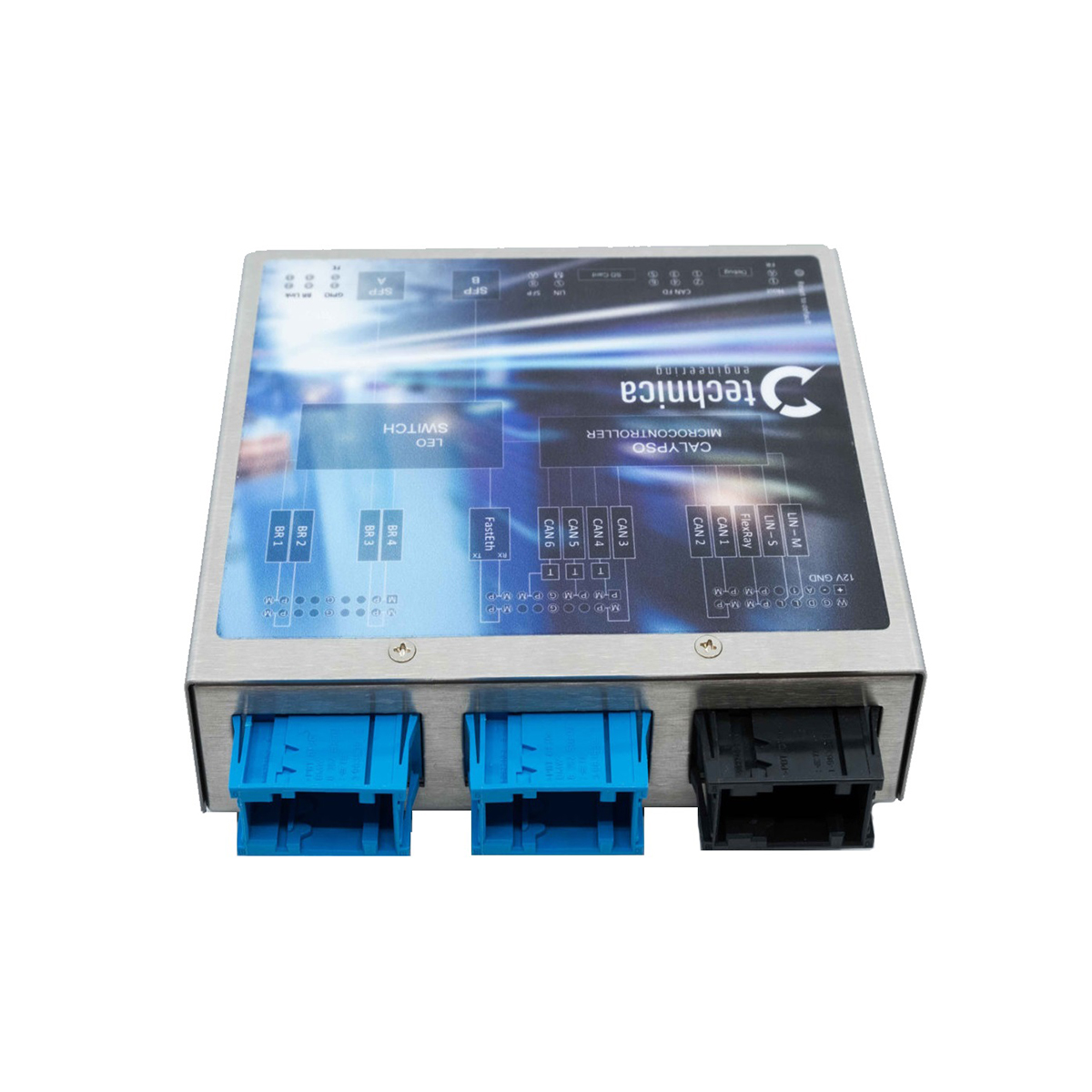

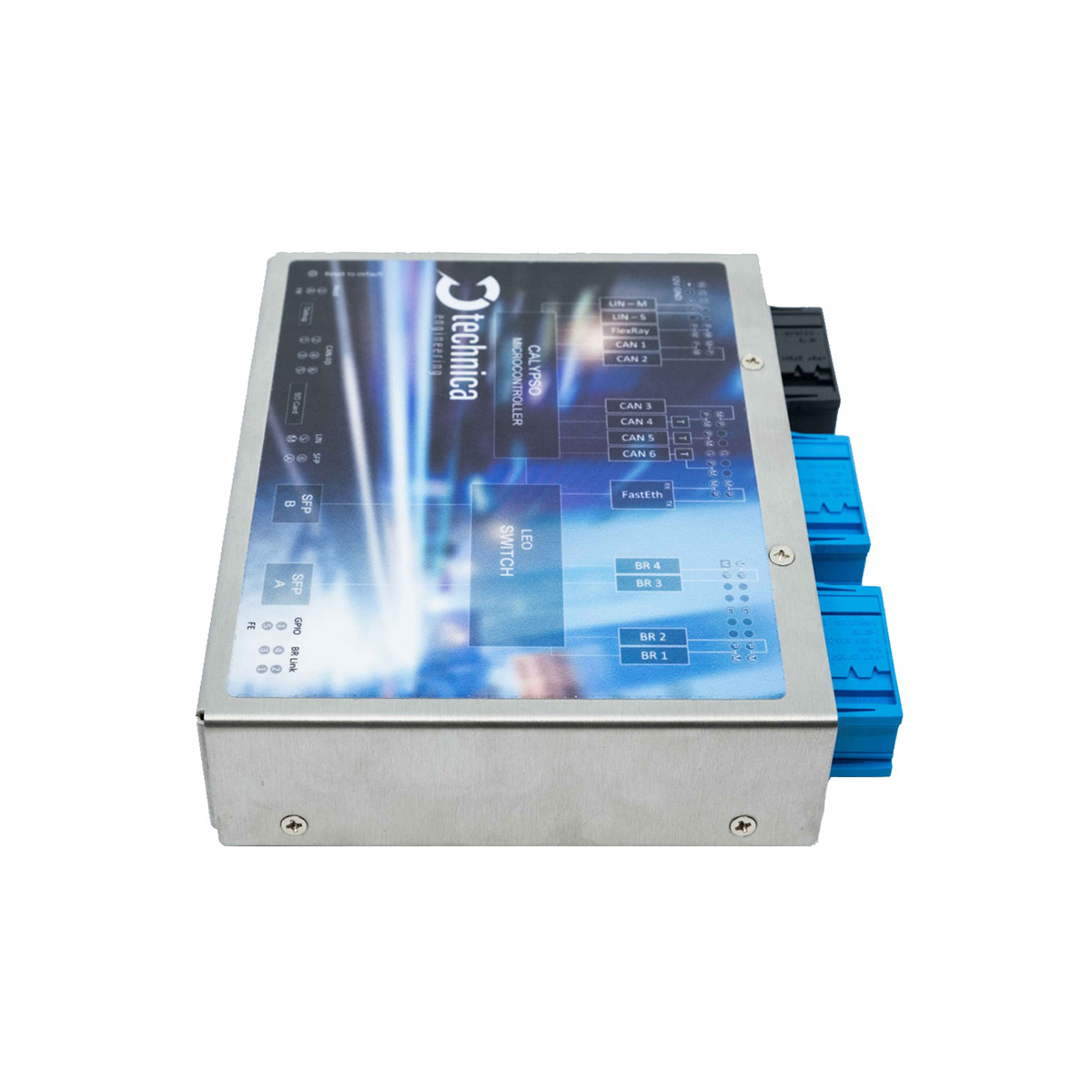

The Universal EMC Device is a revolutionary testing equipment which can perform data logging and traffic generation under high electromagnetic radiations and without influencing your measurements.
通用EMC设备是一种革命性的测试设备,可以在高电磁辐射下执行数据记录和报文发送,而不会影响您的测量。

Universal EMC Device is an ideal tool for testing the performance of newly developed devices under tough electromagnetic environmental conditions. With only one Fiber optic Ethernet connection, you will have access to all the automotive buses. The device will automatically take care of the conversion between Gigabit Ethernet and the automotive standard buses, bidirectionally.
通用EMC设备是在恶劣电磁环境条件下测试新开发设备性能的理想工具。 只需一个光纤以太网连接,您就可以访问所有汽车总线。 该设备将自动处理千兆以太网和汽车标准总线之间的双向转换。

Featuring communication buses like LIN, CAN/CAN-FD, 100BASE-T1 and FlexRay makes the device suited for a vast range of applications. All these functions can be simply configured using the integrated website.
具有LIN,CAN / CAN-FD,100BASE-T1和FlexRay等通信总线,使该器件适用于广泛的应用。 所有这些功能都可以使用内置网页服务器进行简单配置。

Features 产品特点
  • 6 x CAN/CAN-FD
  • 4 x 100BASE-T1
  • 2 x SFP GB Ethernet
  • 2 x LIN
  • 1 x FlexRay Channel A
  • 1 x OBD port (Fast Ethernet)


  • 1 x Reset button 复位开关
  • 18x Status LED 18个状态灯
  • Power Requirement: 12 Volt DC Nominal (8-16 Volt), 4 to 7 Watt
  • Robust stainless steel case不锈钢外壳
  • Size: 135 x 132 x 30 尺寸:135 x 132 x 30 mm
