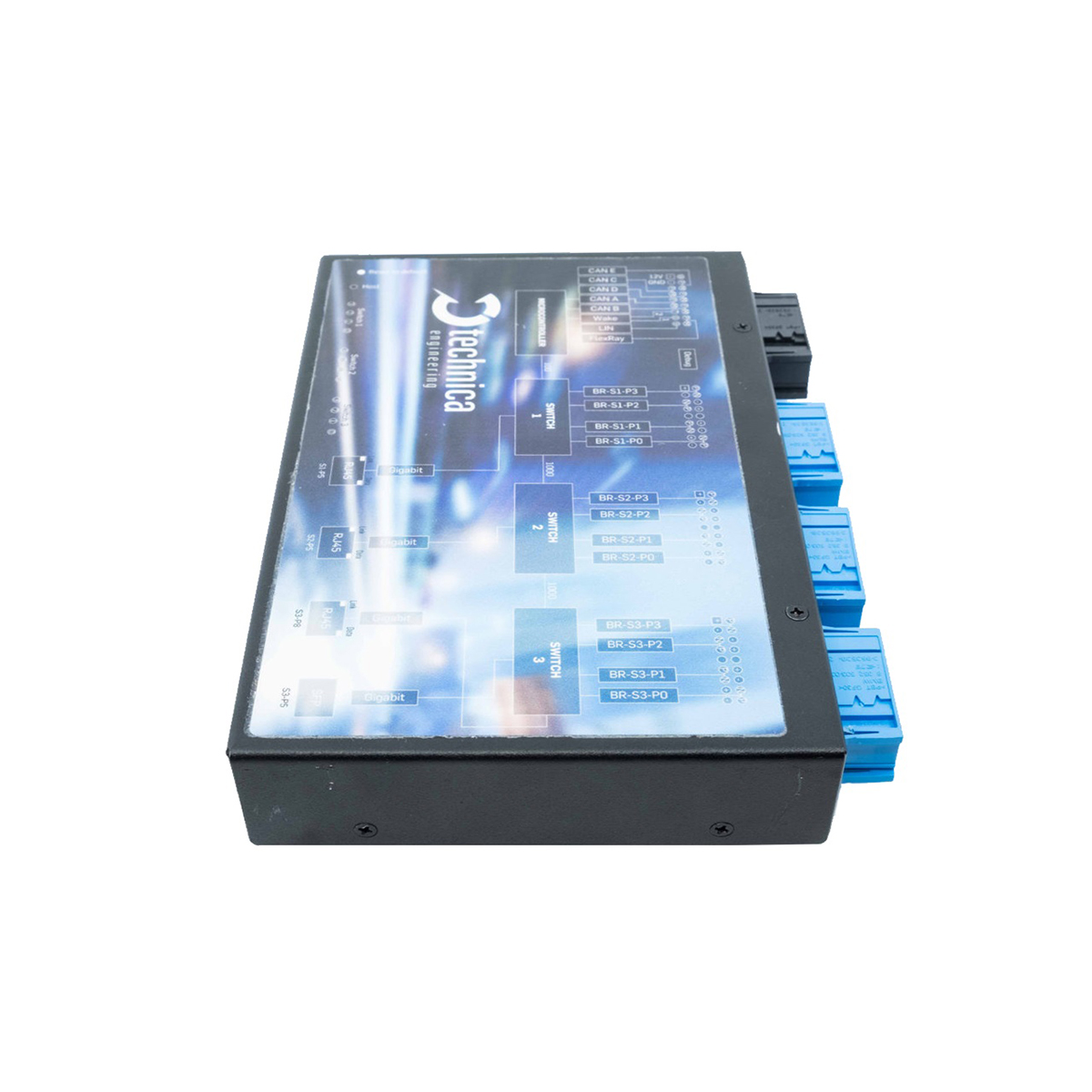

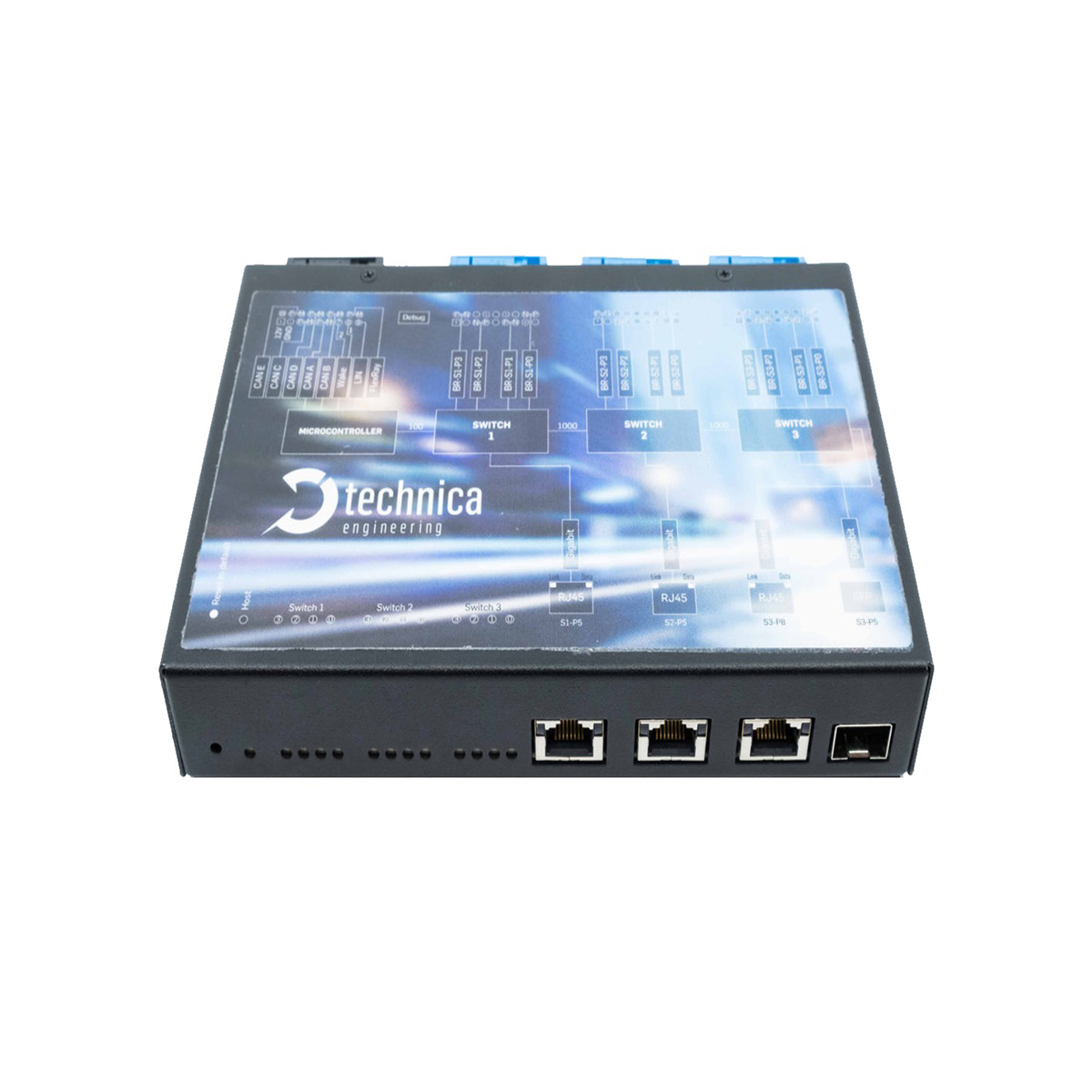

MediaGateway

基于Switch,支持12口100Base-T1和CAN

MediaGateway from Technica Engineering is the most widely used development and testing tool for on-board vehicle networks using 100BASE-T1. It’s in-built automotive switches and 12 x 100BASE-T1 ports enable both capture of traffic between devices while maintaining the normal communication, as well as interaction with such devices via your test set-up. It supports single and double tagging of VLANs, Mirroring, Forwarding and more. An additional and optional CAN-Ethernet bi-directional conversion is available, as well as FlexRay logging via Ethernet and one SFP slot.

Technica Engineering的MediaGateway是应用最广泛的100Base-T1车载网络开发和测试设备。它内置车规级交换机和12个100BASE-T1端口,可在被测设备保持正常通信的同时捕捉其相互之间的通信,也可以与这些被测设备直接通信。它支持单标签和双标签VLAN,镜像,转发的功能。此外,还具有可选的CAN-Ethernet双向转换功能,以及通过以太网的FlexRay记录功能,和一个SFP插槽。

Interface接口
  • 12 100Base-T1
  •  3 1000Base-Tx
  •  5 CAN
  •  1 Flexray
  •  1 SFP slot, Gigabit
Feature产品特点
  • Support IEEE 802.1q (VLAN) mode
    支持IEEE 802.1q (VLAN)模式
  • 802.1AS Bridging functionalities available
    支持 802.1AS桥接功能
  • MAC Filtering for mirroring
    支持镜像时的MAC过滤
  • CAN Ethernet Routing
    支持和CAN和Ethernet路由
  • WakeUp function by CAN Bus or Wakeline
    通过CAN Bus 或Wakeline的唤醒功能
  • Configurable through an integrated web server
    通过内置网络服务器进行配置
  • Support remote control via ANDi or SOME/IP message
    支持通过ANDi或SOME/IP消息远程控制
  • Possibility to reset to default settings by pushbutton
    按压方式恢复缺省设置
  • Status LEDs
    19个状态灯
  • Power output for attached devices: VBAT max. 1 Ampere in total
    为连接的设备供电: VBAT, 共1安培
  • Robust steel case
    钢制外壳
  • Power requirement: 8 – 16 Volt DC, Power consumption : 8 Watt
    供电:8-16伏直流,功耗:8瓦
  • Size: 195 x 143 x 33 mm
    尺寸:195 x 143 x 33 毫米

Use Case使用案例:

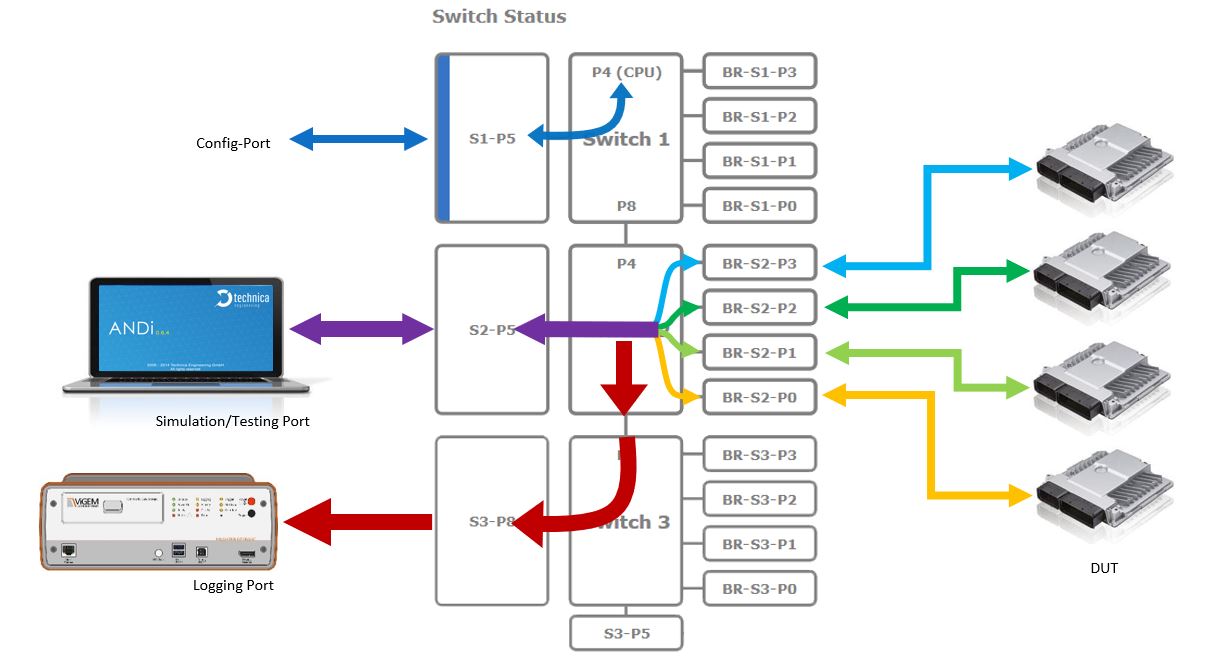

  • 个控制器经过switch与上位机建立双向通信,同时,记录仪捕获控制器和上位机之间的全部报文

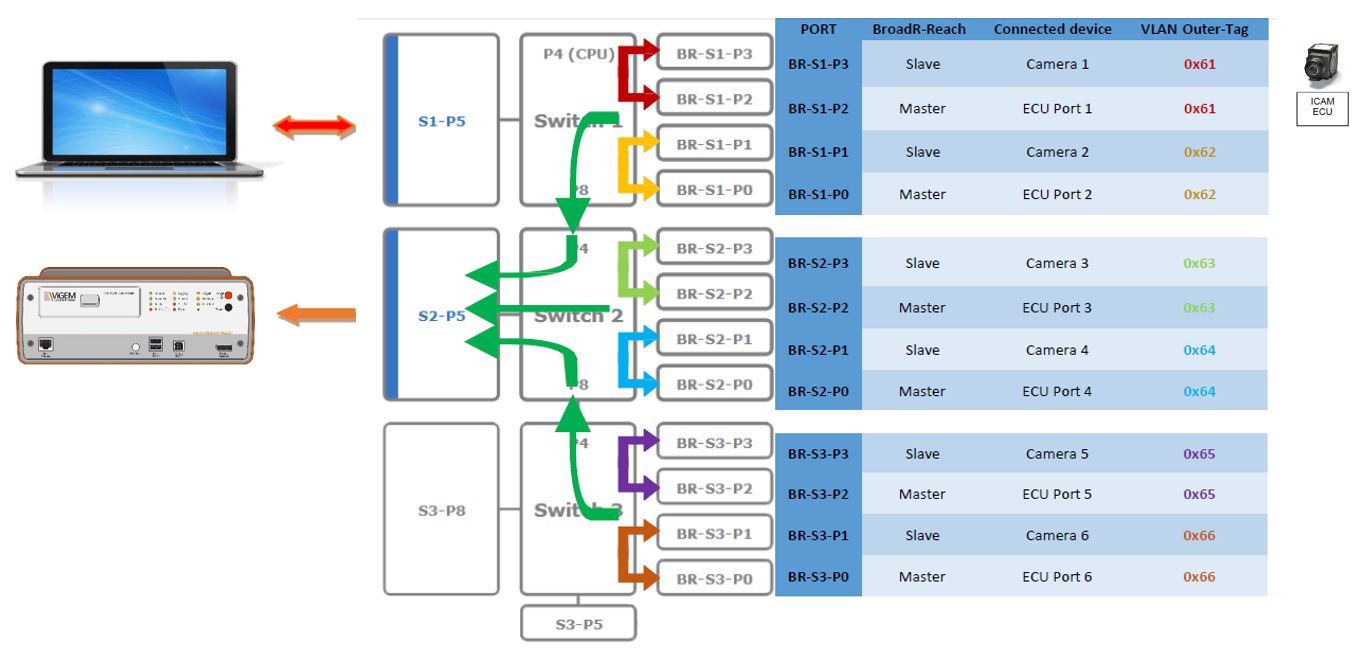

  • 360环视系统的6组摄像头以及其各自与控制器之间的所有通信被记录仪捕获

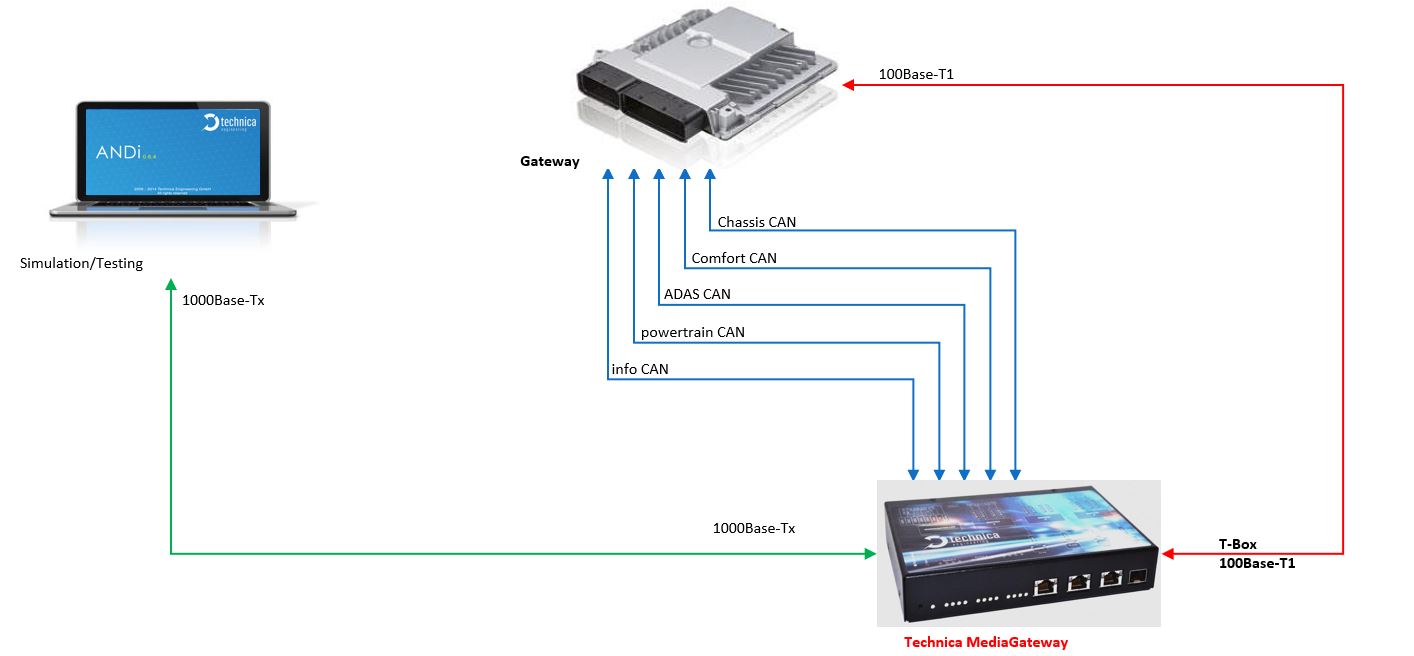

  • 通过MediaGateways的CAN-ETH Gateway功能,上位机模拟对应的CAN节点和以太网节点,实现对被测对象Gateway的路由功能测试。

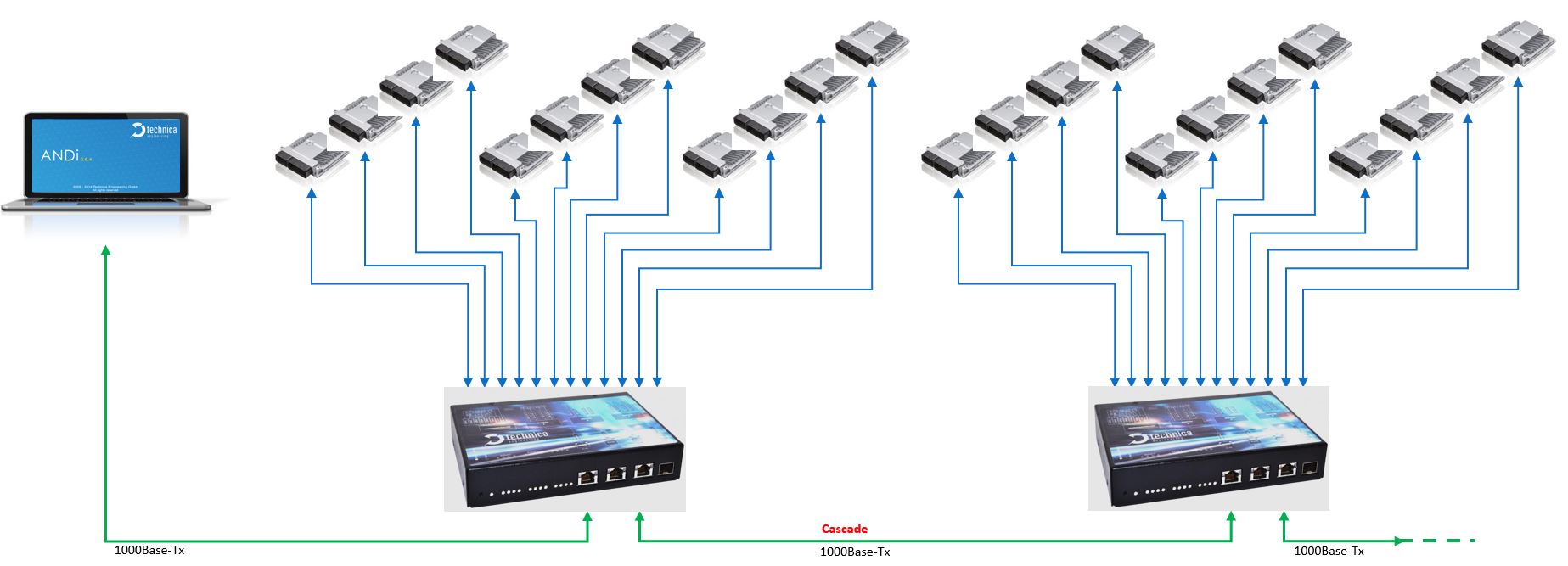

  • 通过级联,在DV,PV过程中对一组控制器实现测试。
