1000Base-T1 SFP Module

1000BASE-T1和SGMII之间全双工转换

Categories: ,
Description描述

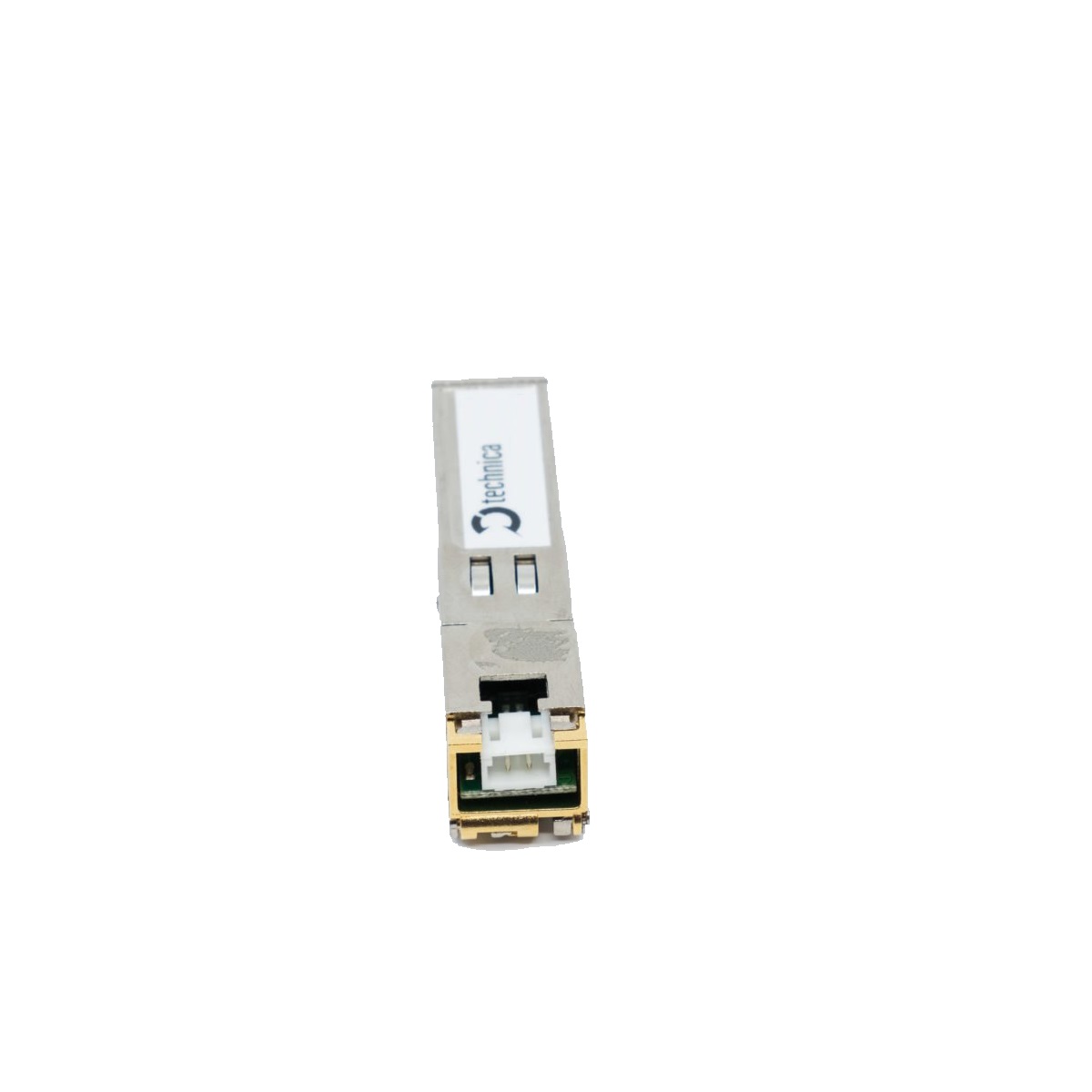

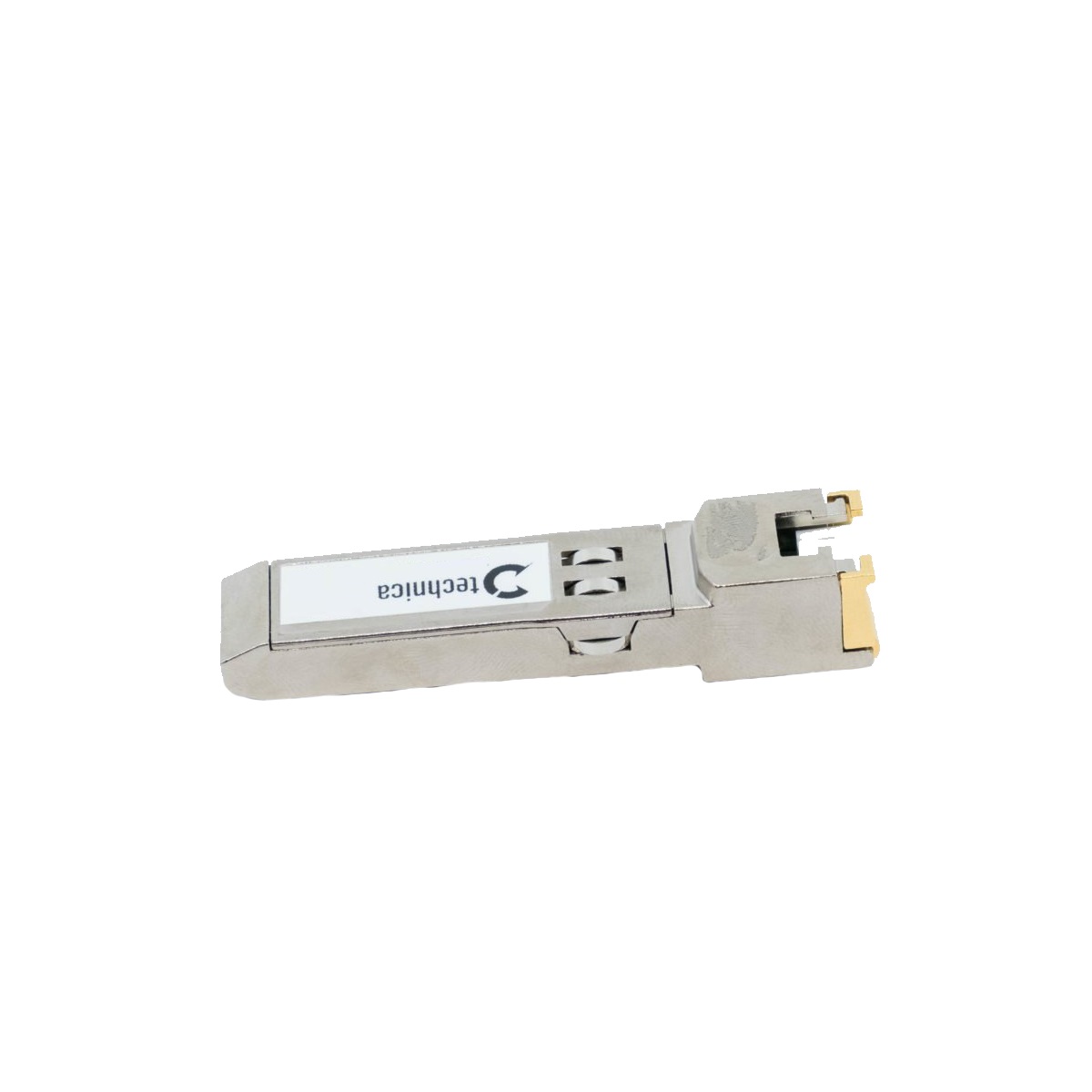

The 1000BASE-T1 SFP Module is the cutting-edge solution to convert between 1000BASE-T1 and SGMII. It fits into a standard Small Form-factor Pluggable (SFP) and generates 1000 Mbit/s full-duplex.
1000BASE-T1 SFP模块是在1000BASE-T1和SGMII之间进行转换的尖端解决方案。它采用标准的小型可插拔(SFP),可实现1000 Mbit/s的全双工通信。

It configures itself to Automotive 1000BASE-T1 after power up. Master/slave mode of operation can be set with the DIP switch.
上电后它与汽车1000BASE-T1配合使用。 可以使用DIP开关设置主/从操作模式。

Registers of the integrated transceiver are accessible via I2C interface for diagnosis and reconfiguration.
可通过I2C接口访问集成收发器的寄存器,以进行诊断和重新配置。

It works seemleesly with our MediaGateway, which has one SFP slot.
它与我们的MediaGateway无缝接口,它有一个SFP插槽。

However, the SFP Modules do not work in a “plug-and-play” manner with any SFP-capable system.
In order to set-up the SFP Modules to work in your system, you must be able to interact via I²C and contact Broadcom (the PHY manufacturer) to receive the NDA (Non Disclosure Agreement)
protected PHY-register setting datasheet to initialize the phy properly. In this regard, Technica cannot support, due to NDA restrictions.” 但是,SFP 模块不能与任何支持 SFP 的系统以“即插即用”方式工作。
为了设置 SFP 模块在您的系统中工作,您必须能够通过 I²C 进行交互并联系 Broadcom(PHY 制造商)收到 NDA(保密协议)保护的 PHY 寄存器设置数据表以正确初始化 phy。
对此,由于保密协议的限制,Technica 无法提供支持。

Features产品特点
  • 1000BASE-T1 and SGMII converter
    实现100Base-T1和SGMIi转换
  • DIP switch for Master/Slave configuration
    通过DIP 开关实现Master/Slave配置
  • Supports I2C for internal register access
    收发器的寄存器可以通过I2C接口访问
  • Fits into a standard SFP Slot
    适用标准的SFP插槽
  • Power requirements: 3.3 Volt DC
    供电:3.3V 直流
  • Size: 68 x 14 x 14 mm
    尺寸:68 x 14 x 14 毫米
