CM Eth Combo

能捕获2路100Base-T1和1路1000Base-T1的新一代Capture Module

With Ethernet as an in-vehicle-network (IVN) comes the challenge of capturing the traffic of these new technologies: 100BASE-T1 and 1000BASE-T1.
以太网作为车载网络(IVN)带来了捕获这些新协议报文的挑战:100BASE-T1和1000BASE-T1。

The CM Eth Combo provides the necessary ports to capture the traffic from 1 x 1000BASE-T1 line (between two DUTs) and 2 x 100BASE-T1 lines, correspondingly.
CM Eth Combo提供必要的端口,以相应地捕获来自1路1000BASE-T1线路(两个DUT之间)和2路100BASE-T1线路的报文

The traffic is captured without causing interference on the network and delivered with a 40ns resolution hardware time stamp, thus making the analysis of AVB/TSN traffic possible.
捕获报文不会对网络造成干扰,并提供40ns分辨率的硬件时间戳,从而可以分析AVB/TSN流量。

Several devices can be used on the same setup, whenever more T1 ports are needed, and when other IVN technologies are present, the inbuilt-synchronization using 802.1AS allows for simultaneous use with the other “IVN2Eth Capture Modules”.
如果需要更多T1端口,都可以在同一环境上使用多个设备,可使用内置的802.1AS协议与其他“IVN2Eth捕获模块”同步。

Many additional features make this device appropriate for general-purpose testing.
该设备还有许多用于通用测试的其他功能

FEATURES
  • 1 Link Line 1000BASE-T1 (2 Ports)
  • 2 Link Line 100BASE-T1 (4 Ports)

  • PLP Protocol (time stamp, ...)
    PLP协议
  • Configure easily via webserver
    通过网络服务器配置
  • Network Time Synchronization (802.1AS)– allows to synchronize multiple CAN Combos or any other “Capture Module”
  • Cascading and synchronization of multiple devices
    级联和同步多个设备
  • Source Timestamping with 40 ns resolution
    40ns精度的时间戳
  • High Speed Startup
    高速启动
  • Startup Buffer
    启动缓存
  • Output Traffic Shaping
    输出流量整型

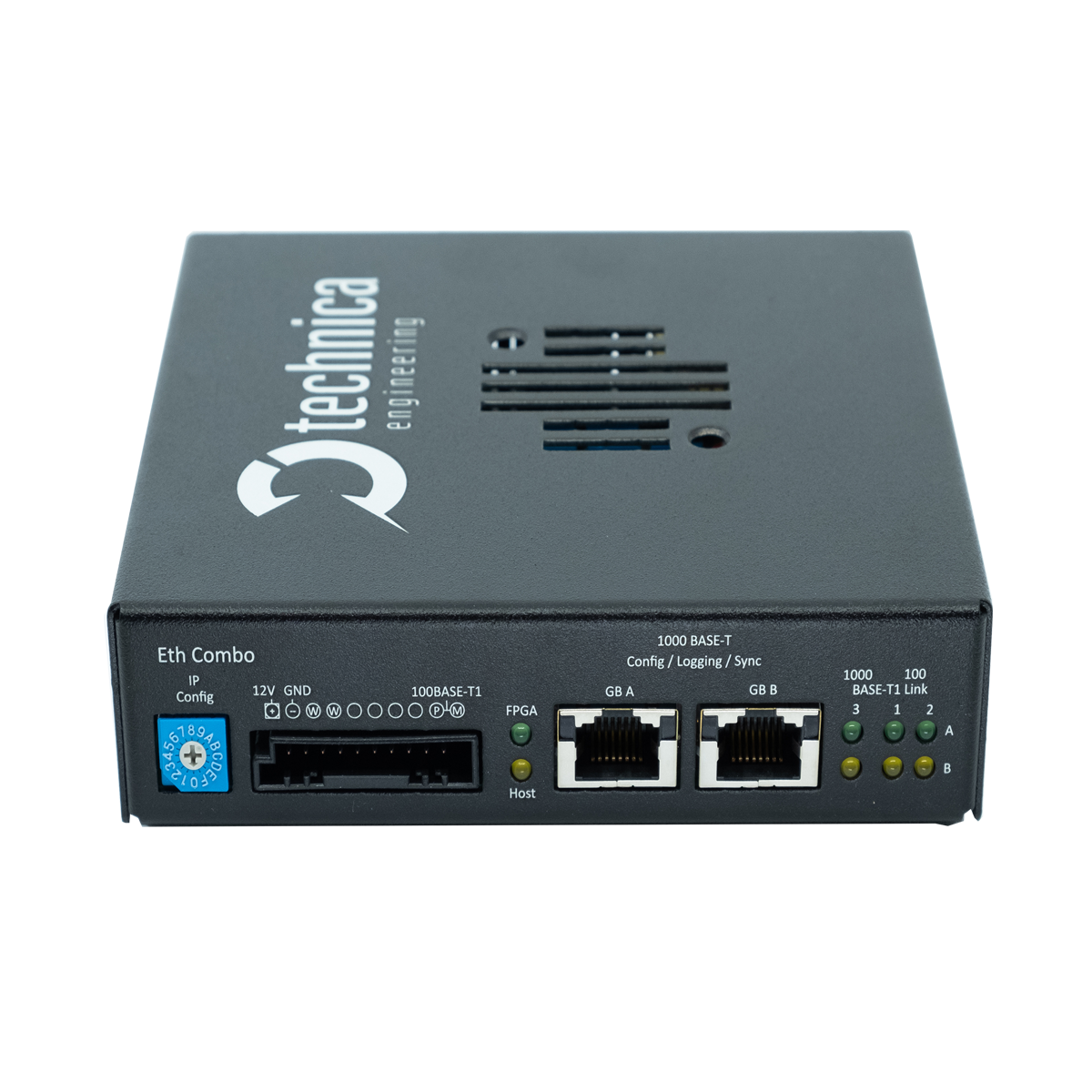

  • Rotary Switch for manual configuration of the device’s IP-Addresses (Gbit – RJ-45)
    用于人工设置设备的IP地址的的圆形开关
  • Wakeup capable
    可以唤醒
  • Extended Power Mode for Car integration
    扩展的电源管理功能用于车辆集成

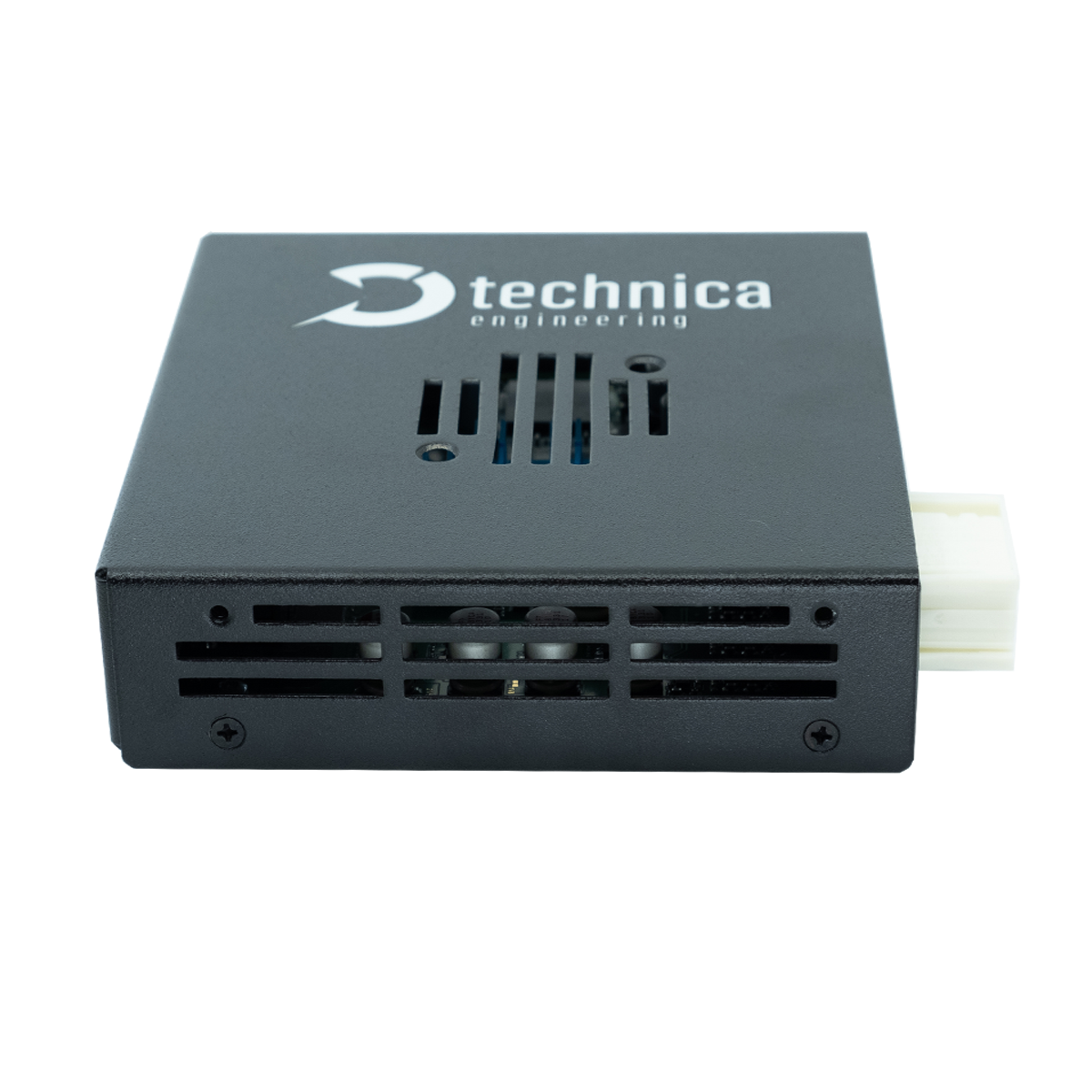

  • Robust stainless-steel case
    坚固的不锈钢外壳
  • Size: 129 x 120 (134) x 32 mm
    大小:129 x 120 (134) x 32 毫米
