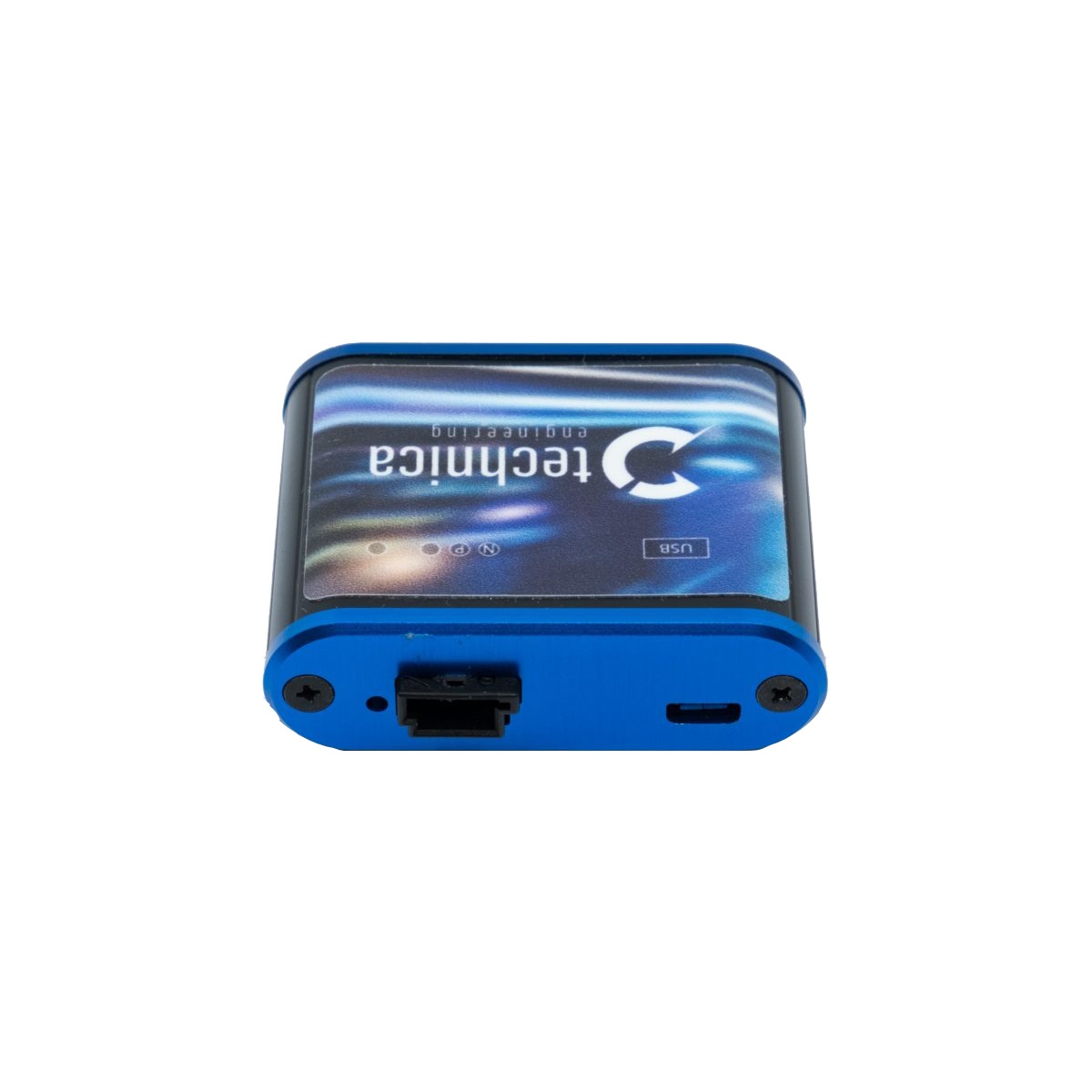

100BASE-T1 USB Converter

100Base-T1和USB之间全双工转换

Category:

The USB 100BASE-T1 Converter from Technica Engineering allows you to expand your PC/Laptop with an additional Network Interface Card with the in-built USB-LAN chip and to interact directly with your 100BASE-T1 (a.k.a. BroadR-Reach ™) device with only one device. The power supply for the converter is provided by the USB port.
来自Technica Engineering的100BASE-T1 USB转换器允许您使用内置USB-LAN芯片来扩展您的PC /笔记本电脑网络接口,并与您的100BASE-T1(也称为BroadR-Reach™)设备直接交互 。 转换器的电源由USB端口提供。

Windows and Linux drivers available.
提供Windows和Linux驱动程序。

It uses the widely used micro-USB and one Broadcom BCM 89811 phy.
它使用广泛使用的micro-USB和一个Broadcom BCM 89811 phy。

Thus the USB 100BASE-T1 Converter is the ideal solution for working quickly and efficiently with the new 100BASE-T1 technology.
因此,100BASE-T1 USB转换器是使用新型100BASE-T1技术快速高效工作的理想解决方案。

Feature产品特点

  • Converts 100Base-T1 100 MBit/s full duplex 1x unshielded twisted pair (UTP) to USB-LAN
    将100Base-T1信号全双工方式以非屏蔽双绞线转换到USB-LAN
  • Master/slave configuration through a windows tool(Linux driver available)
    通过windows工具进行主从配置(也提供Linux驱动)
  • Status LEDs状态灯
  • Standard Tyco MQS Connector(100BASE-T1)
    标准Tyco MQS接插件(100BASE-T1)
  • Standard USB Connector
    标准USB接插头
  • Power requirement: 5V DC provided from USB 2.0,No additional power supply Needed
    电源需求:5V,由USB2.0供电,不需额外供电
  • Small :60 x 42 x 19mmSmall
    尺寸:60*42*19毫米

User Case 使用案例

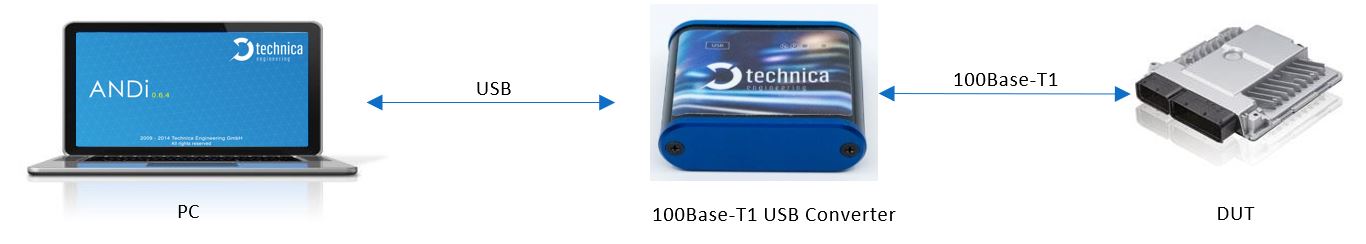

  • 通过100Base-T1 USB Converter,上位机和控制器实现双向通信

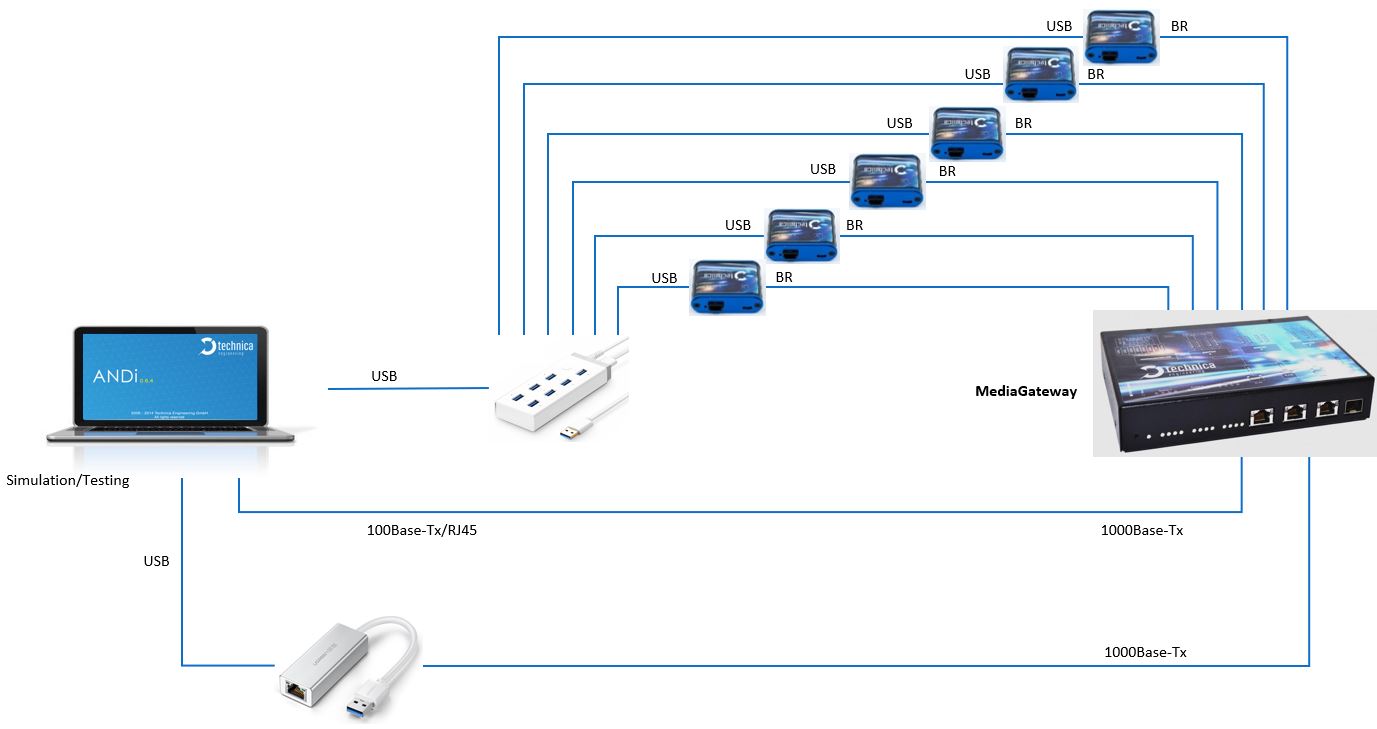

  • 通过100Base-T1 USB Converter,上位机得以扩展多个以太网网口,进而实现节点仿真
