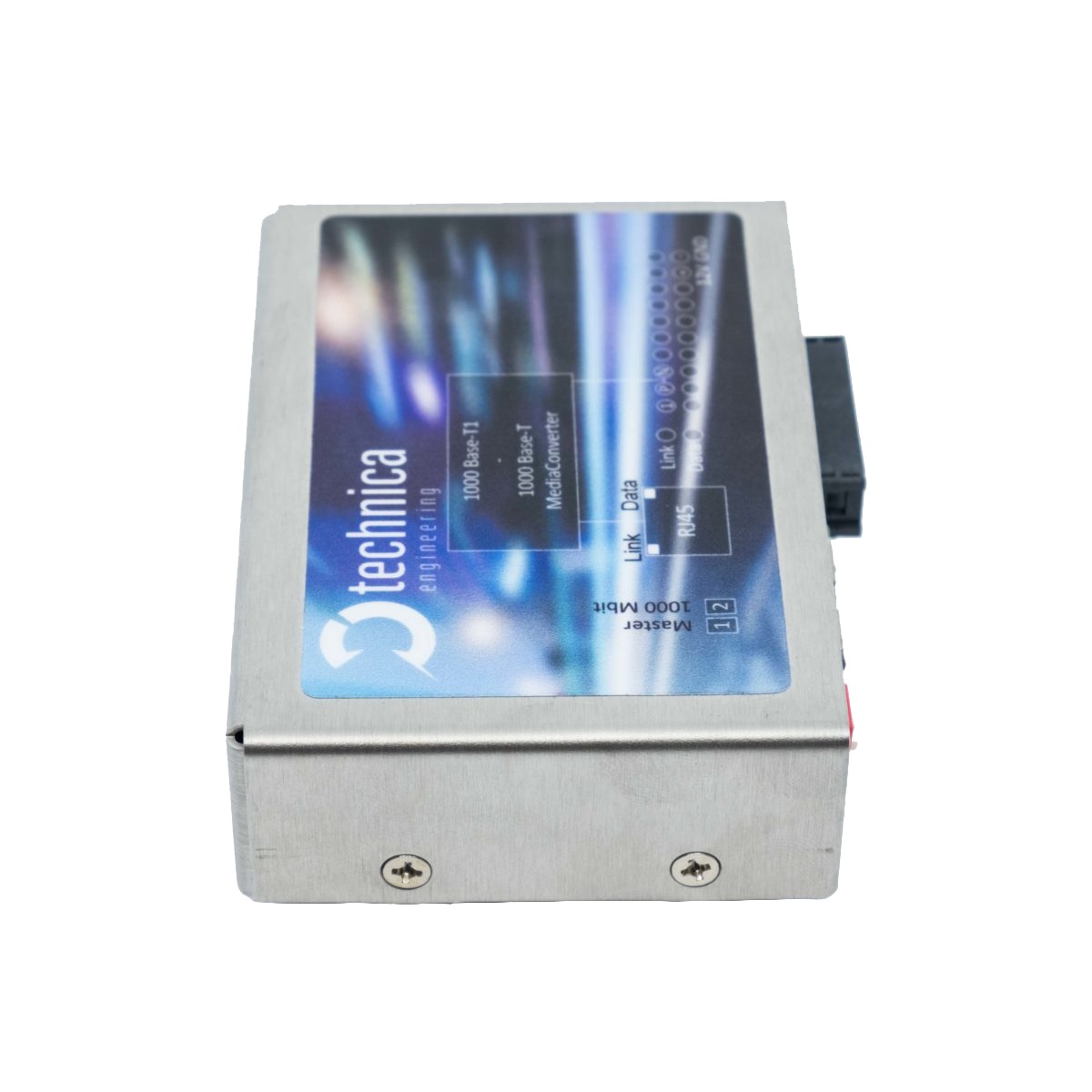

100/1000BASE-T1 MediaConverter

1000Base-T1和1000Base-Tx之间全双工物理层转换

Description描述

The 1000BASE-T1 Media Converter establishes one direct point-to-point conversion between automotive ECU’s using 1000BASE-T1 and any standard Gigabit Ethernet device with RJ-45 connector.
1000BASE-T1 Media Converter在1000BASE-T1车载控制器和任何带RJ-45连接器的标准千兆以太网设备之间建立直接的点对点转换。

No packets are stored or modified. Both 1000 Mbps and 100 Mbps modes are available with the Marvell 88Q2112 Phy.
不存储或修改数据包。 使用Marvell 88Q2112 Phy,可提供1000 Mbps和100 Mbps模式。

Thus, the 1000BASE-T1 Media Converter is the ideal solution for working quickly and efficiently with the new 1000BASE-T1 technology.
因此,1000BASE-T1 Media Converter是与新型1000BASE-T1技术快速高效交互的理想解决方案。

Feature
  • duplex conversion between 1000Base-T1 and 100BaseTx
    1000Base-T1和 100Base-Tx的全双工转换
  • Master/Slave configuration
    主/从 配置
  • Configuration DIP switches
    DIP配置开关
  • Status LEDs
    状态灯
  • Massive steel housing
    金属外壳
  • Automotive Tyco Nano MQS connector(Power, BroadR-Reach)
    汽车级 Tyco Nano MQS 接插件
  • Standard Ethernet RJ45 connector
    标准以太网RJ45接口
  • Power requirement: 8 to 16 Volt DC,
    电源需求:8-16伏直流
  • Power consumption: 2 Watt
    功耗:2瓦
  • Size: 95 x 95x 32 mm
    尺寸: 95 x 95x 32毫米
