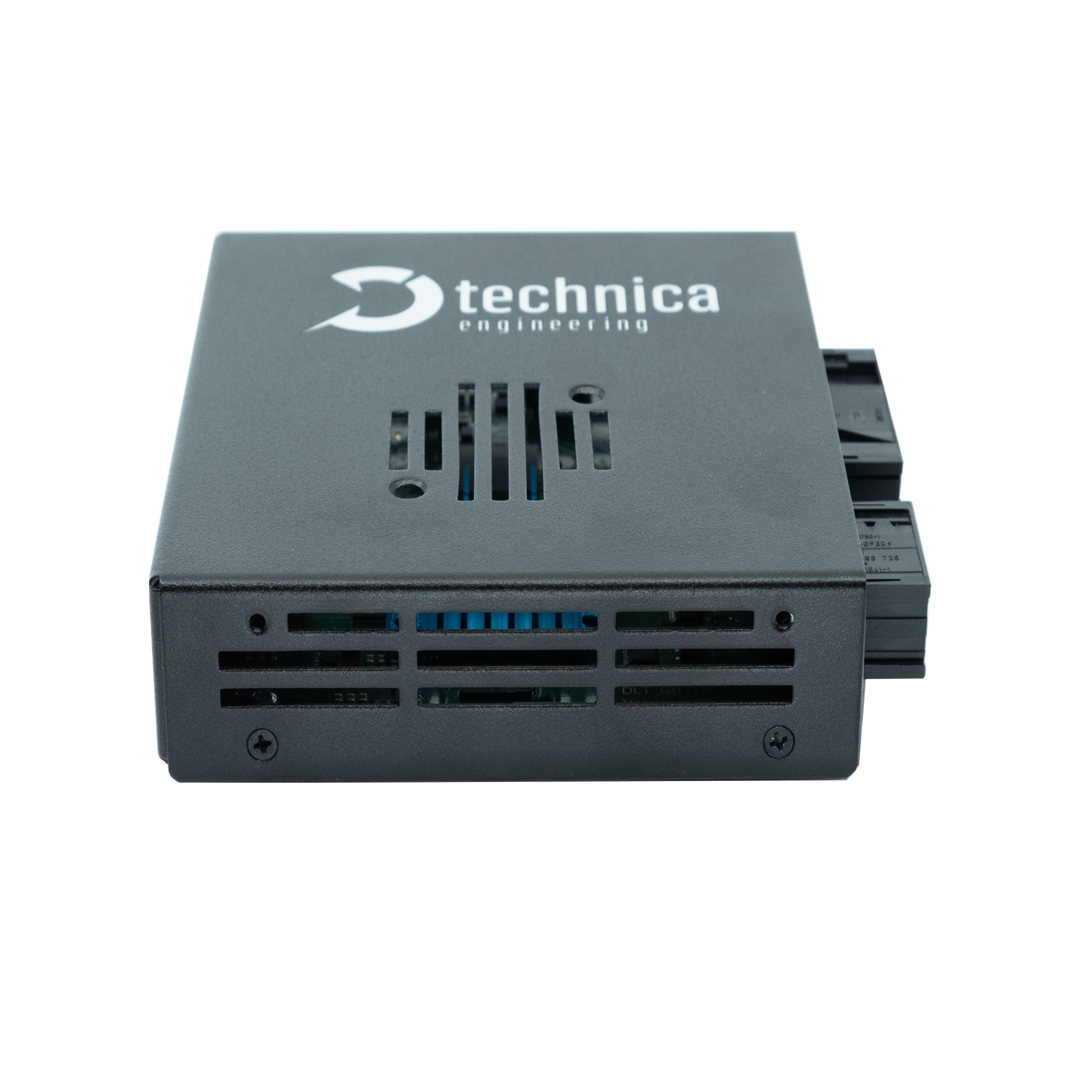

CM CAN Combo

能捕获6路CAN或CAN-FD, 1路FlexRay, 2路RS232的新一代Capture Module

In the Era of autonomous driving one key challenge for the test and validation is the reliable capture of relevant in-vehicle-traffic from different communication technologies.
在自动驾驶时代,测试和验证的一个关键挑战是可靠地捕获来自不同通信技术的相关车载报文。

With the CM CAN Combo from Technica Engineering, the traffic from the conventional CAN busses, as well as CAN-FD, FlexRay and RS-232 can be captured without interfering the original networks.
使用Technica Engineering的CM CAN Combo,可以捕获传统CAN总线以及CAN-FD,FlexRay和RS-232的流量,而不会干扰原始网络。

The messages are timestamped with 40ns resolution when captured and sent within the PDUs of Ethernet MAC II frames via 100BASE-T1 or Standard Ethernet.
捕获消息的时间戳为40ns,并封装在以太网MAC II帧的PDU内通过100BASE-T1或标准以太网发送

Several devices can be used on the same setup, whenever more interfaces are needed, and when other IVN technologies are present, the inbuilt-synchronization using 802.1AS allows for simultaneous use with the other “IVN2Eth Capture Modules”.
如果需要更多接口,都可以在同一搭建上使用多个设备,可使用内置的802.1AS协议与其他“IVN2Eth捕获模块”同步。

Many additional features make this device appropriate for general-purpose testing.
该设备还有许多用于通用测试的其他功能
FEATURES
  • 6x CAN/CAN-FD
  • 1x FlexRay
  • 2x RS-232/TTL
  • PLP Protocol (time stamp, ...)
    PLP协议
  • Configure easily via webserver
    通过网络服务器配置
  • Network Time Synchronization (802.1AS)– allows to synchronize multiple CAN Combos or any other “Capture Module”
  • Cascading and synchronization of multiple devices
    级联和同步多个设备
  • Source Timestamping with 40 ns resolution
    40ns精度的时间戳
  • High Speed Startup
    高速启动
  • Startup Buffer
    启动缓存
  • Output Traffic Shaping
    输出流量整型
  • AVB/TSN Capture capable
  • Time-Aware Injection

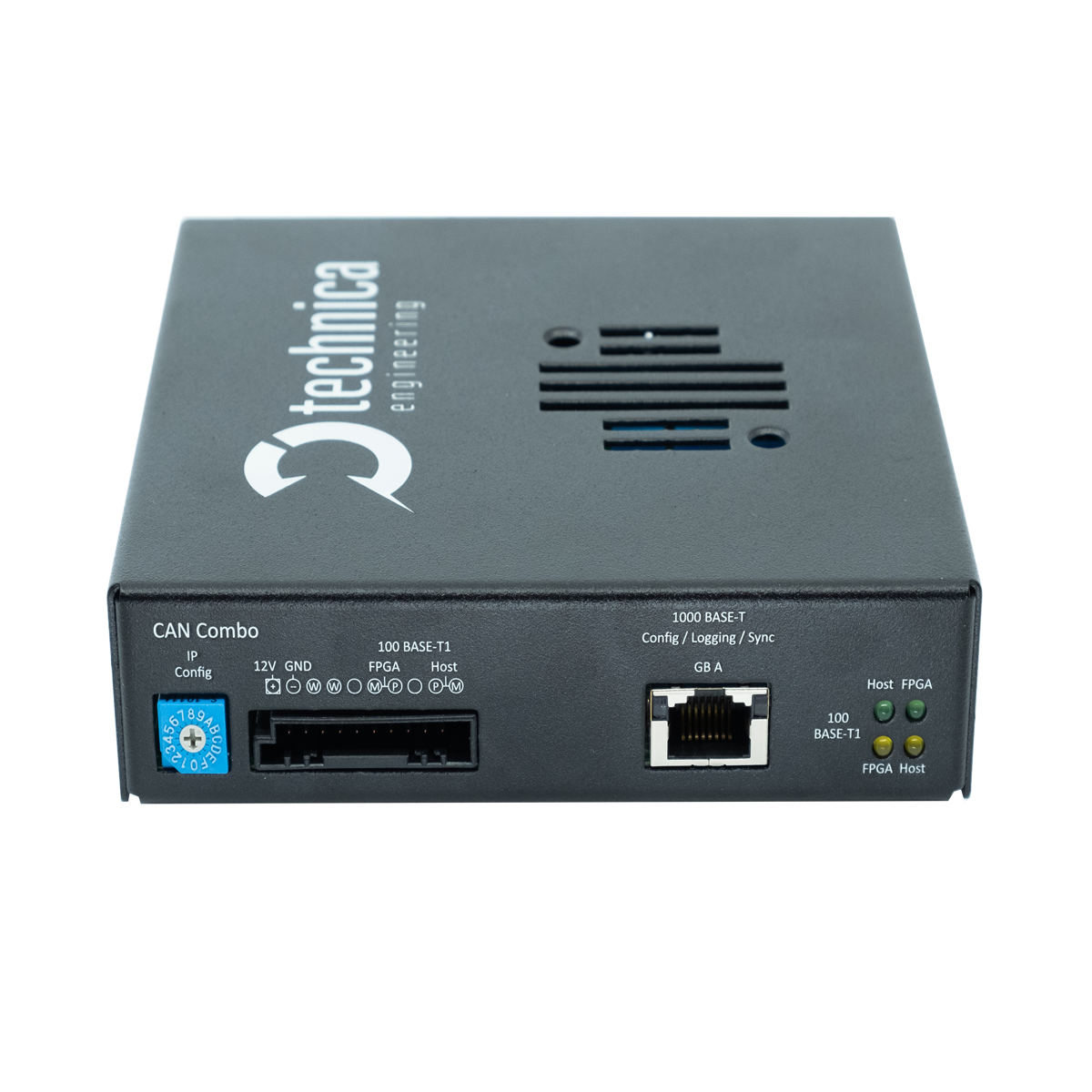

  • Rotary Switch for manual configuration of the device’s IP-Addresses (Gbit – RJ-45)
    用于人工设置设备的IP地址的的圆形开关
  • Wakeup capable
    可以唤醒
  • Extended Power Mode for Car integration
    扩展的电源管理功能用于车辆集成
  • Robust stainless-steel case
    坚固的不锈钢外壳
  • Size: 129 x 120 (134) x 32 mm
    大小:129 x 120 (134) x 32 毫米
