100BASE-T1 SFP Module


Categories: ,

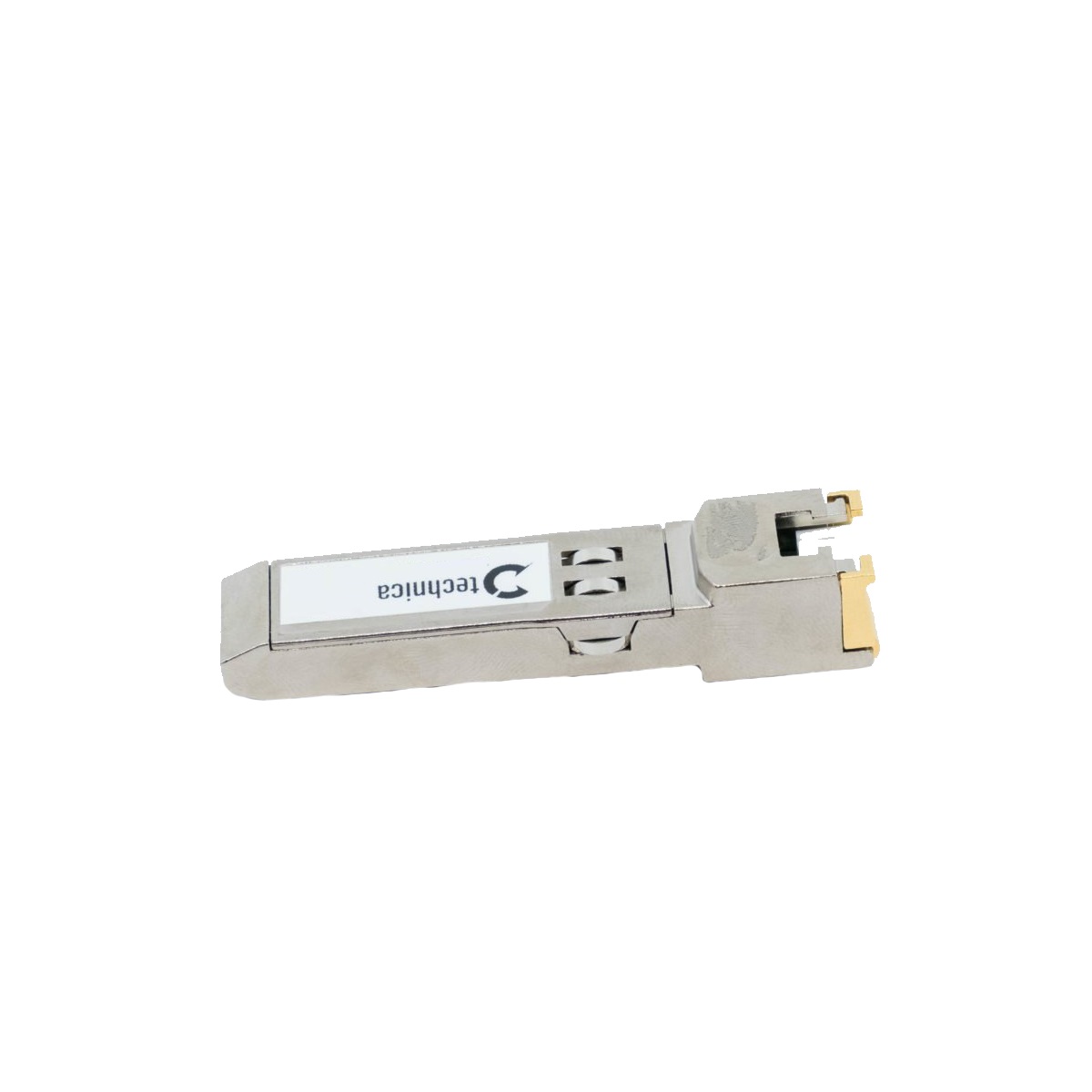

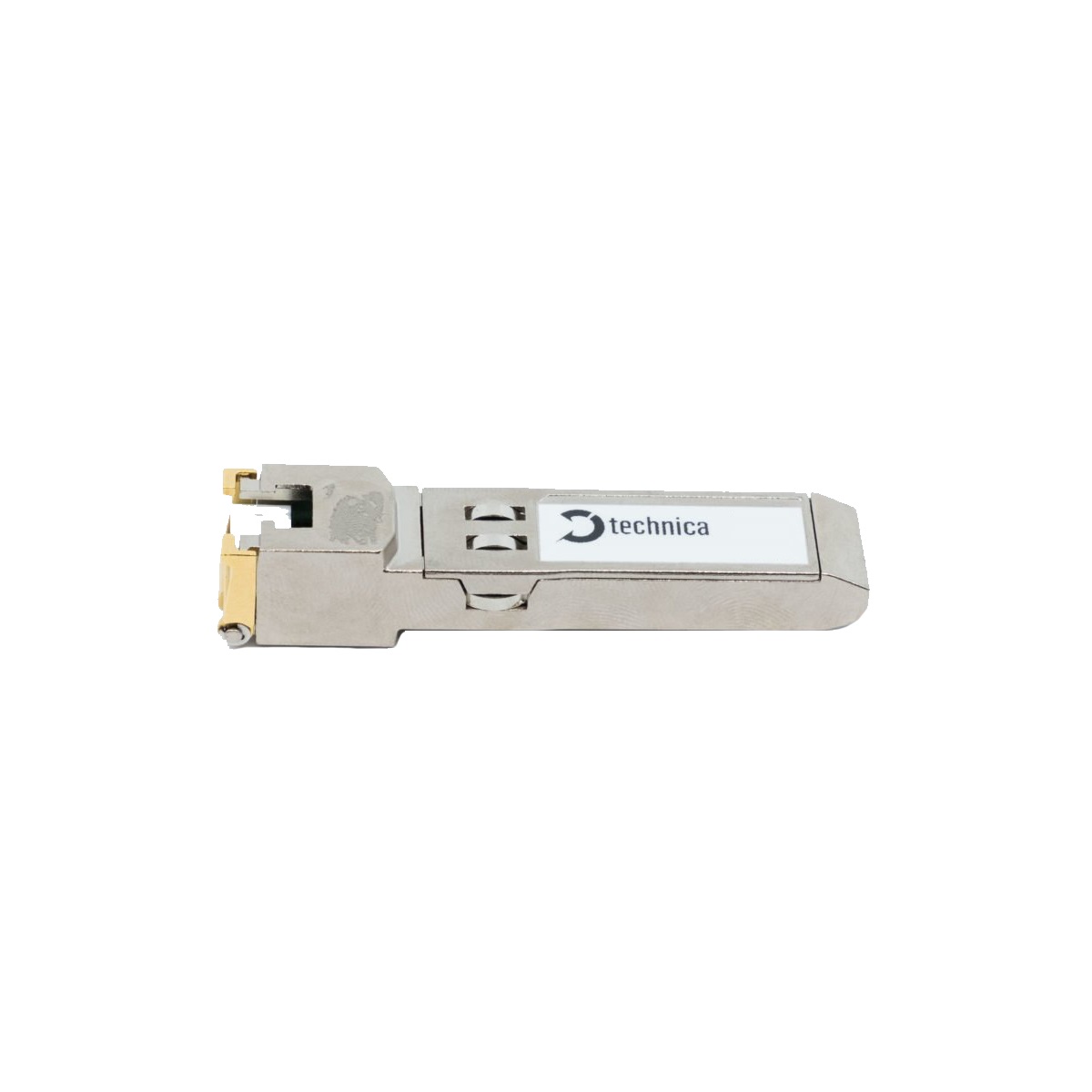

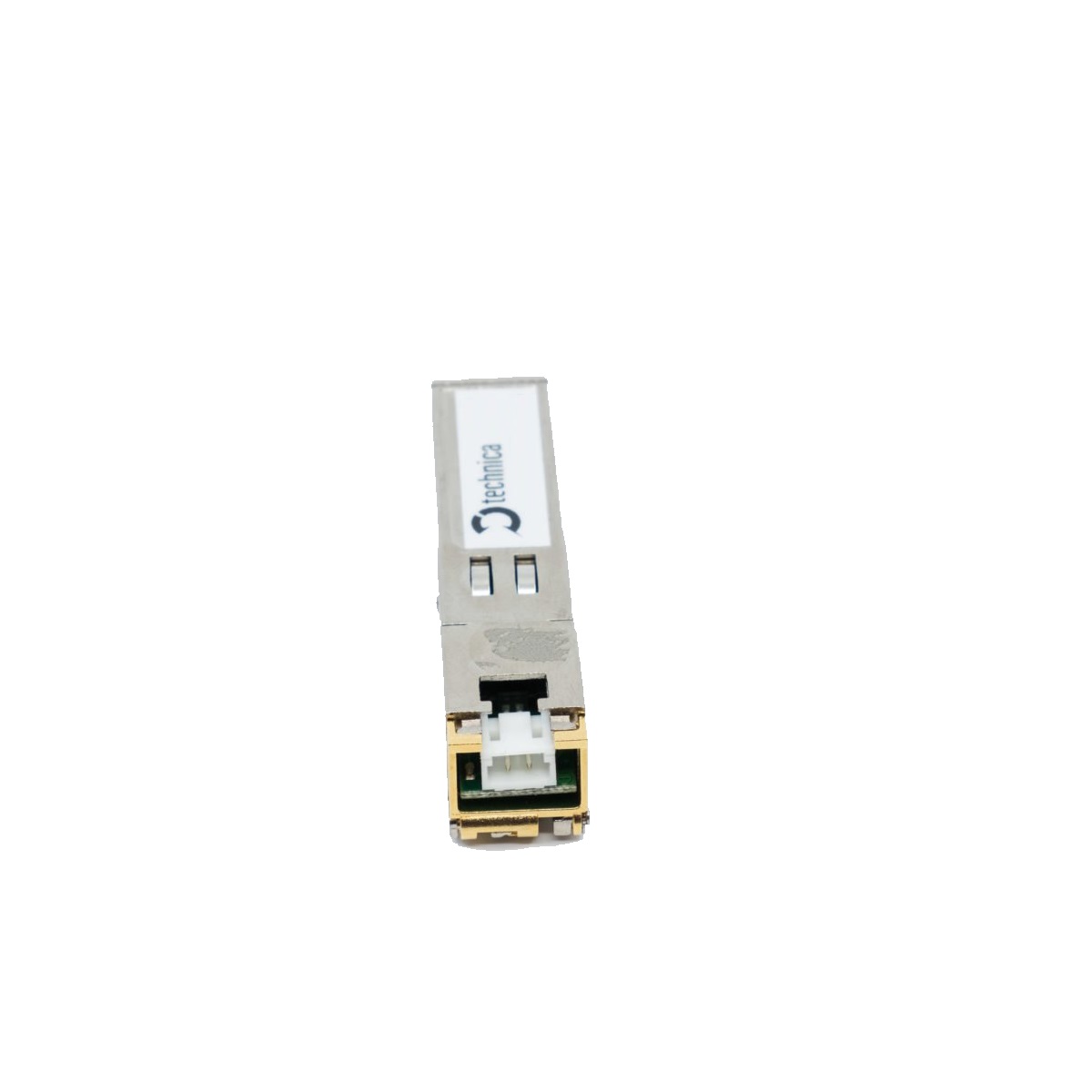

The 100BASE-T1 SFP Module is the optimum solution to convert between 100BASE-T1 and SGMII. It fits into a standard Small Form-factor Pluggable (SFP) and generates 100 Mbit/s full-duplex 100BASE-T1.
100BASE-T1 SFP模块是在100BASE-T1和SGMII之间进行转换的最佳解决方案。采用标准的小型可插拔(SFP),可生成100 Mbit/s全双工100BASE-T1。

It configures itself to Automotive 100BASE-T1 after power up. Master/slave mode of operation can be set with the DIP switch.

Registers of the integrated Transceiver are accessible via I2C interface for diagnosis and reconfiguration.

It works seemlessly with our MediaGateway, which has one SFP slot.

However, the SFP Modules do not work in a “plug-and-play” manner with any SFP-capable system.
In order to set-up the SFP Modules to work in your system, you must be able to interact via I²C and contact Broadcom (the PHY manufacturer) to receive the NDA (Non Disclosure Agreement)
 protected PHY-register setting datasheet to initialize the phy properly. In this regard, Technica cannot support, due to NDA restrictions.”
但是,SFP 模块不能与任何支持 SFP 的系统以“即插即用”方式工作。
为了设置 SFP 模块在您的系统中工作,您必须能够通过 I²C 进行交互并联系 Broadcom(PHY 制造商)收到 NDA(保密协议)保护的 PHY 寄存器设置数据表以正确初始化 phy。
对此,由于保密协议的限制,Technica 无法提供支持。

Features 产品特点
  • 100BASE-T1 and SGMII converter
  • DIP switch for Master/Slave configuration
  • Supports I2C for internal register access
  • Fits into a standard SFP Slot
  • Power requirements: 3.3 Volt DC
    供电:3.3V 直流
  • Size: 68 x 14 x 14 mm
    尺寸:68 x 14 x 14 毫米
