100/1000BASE-T1 MediaConverter h-MTD


The 100/1000BASE-T1 Media Converter establishes one direct point-to-point conversion between automotive ECUs using 100BASE-T1 or 1000BASE-T1 and any 100BASE-Tx and 1000BASE-T with h-MTD connector.
100/1000BASE-T1 Media Converter在使用100BASE-T1或1000BASE-T1的车载ECU和任何带h-MTD连接器的100BASE-Tx和1000BASE-T以太网设备之间实现直接的点对点转换。

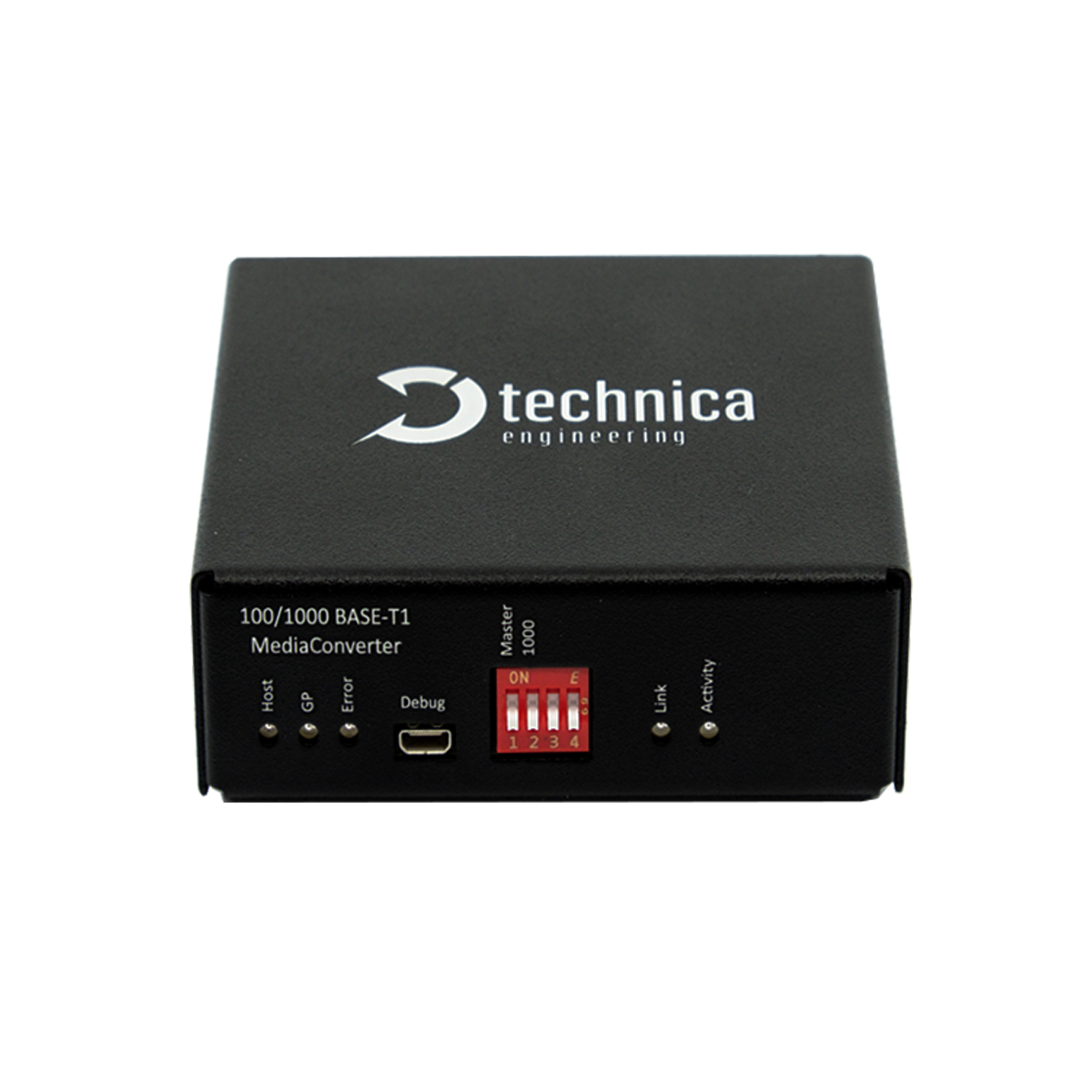

the DIP switches provide selection of master/slave, 100 or 1000Mbit/s, Legacy or IEEE Mode, and frame generation (to generate Ethernet Frames for 100/1000Mbps modes
通过DIP开关,能实现如下选择:master/slave, 100或1000Mbit/s, 遗留模式或IEEE模式和帧生成(按100/1000Mbit/s速率生成以太网帧)
No packets are stored or modified.

First on the market and highest proven reliability.

It uses the Marvell Phy.
  • 1 Port 100/1000BASE-T1 Ethernet with Marvell 88Q2112 A2 Transceiver
    使用Marvell 88Q2112 A2收发器的单通道100/1000BASE-T1以太网
  • 100/1000 MBit/s Fullduplex on a single Unshielded Twisted Pair with MATEnet connector
    仅用一根使用h-MTD接插件的非屏蔽双绞线上同时实现100/1000 MBit/s全双工通信
  • 1 Port 100BASE-TX/1000BASE-T Ethernet with RJ-45 connector
  • Power MQS connector
  • Special MQS connector (Input enabling force slave mode and force link down / Output enabling signal for link status)
    特殊的MQS连接器(输入使能强制slave模式和强制link down/输出使能链接状态信号)
  • Micro HDMI Debug connector.
    Micro HDMI 调试接插件
  • 4 DIP Switches for easy configuration (master/slave, 100/1000 Mbit/s, Legacy/IEEE, Frame Generation).
    4个DIP开关,易于配置(主/从,100/1000 Mbit/s,传统/IEEE,帧生成)
  • Status LEDs

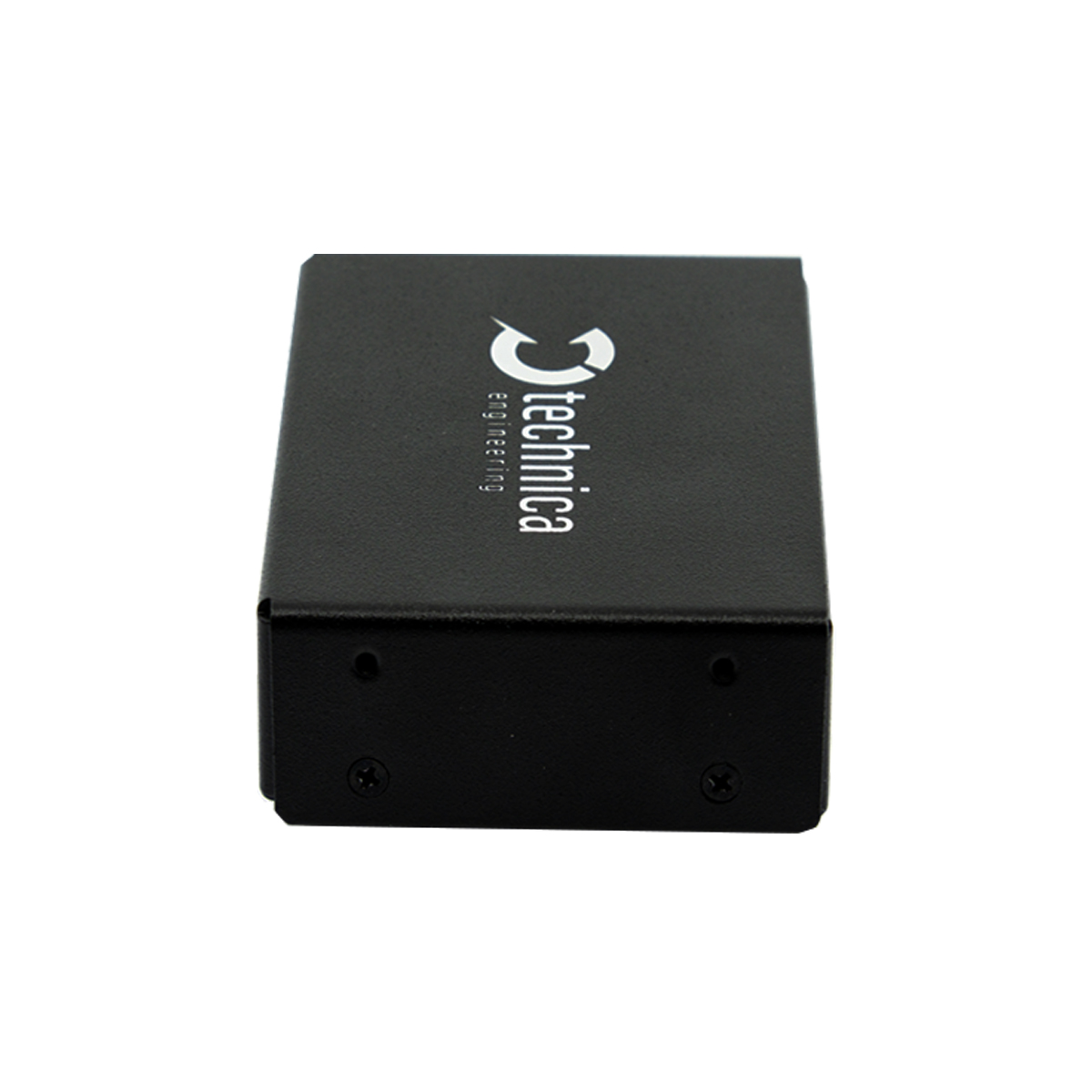

  • Robust stainless-steel case
  • Size 89 x 72 x 28 mm
    尺寸 89 x 72 x 28 毫米

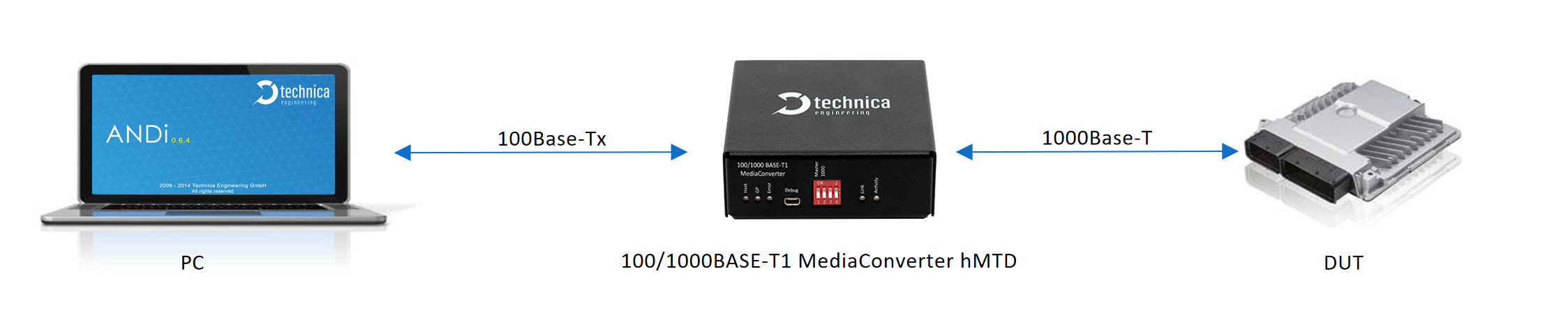

User Case 使用案例
