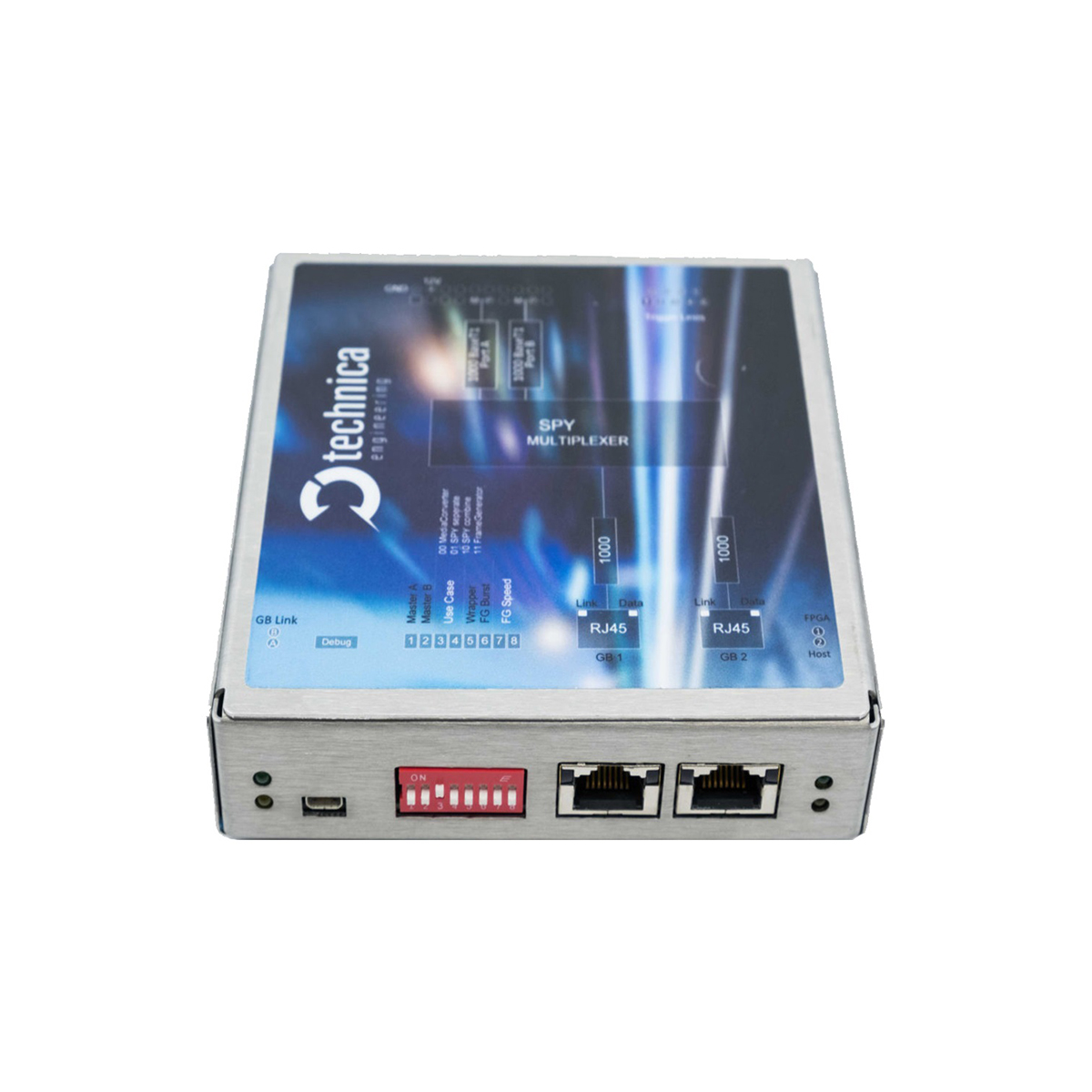

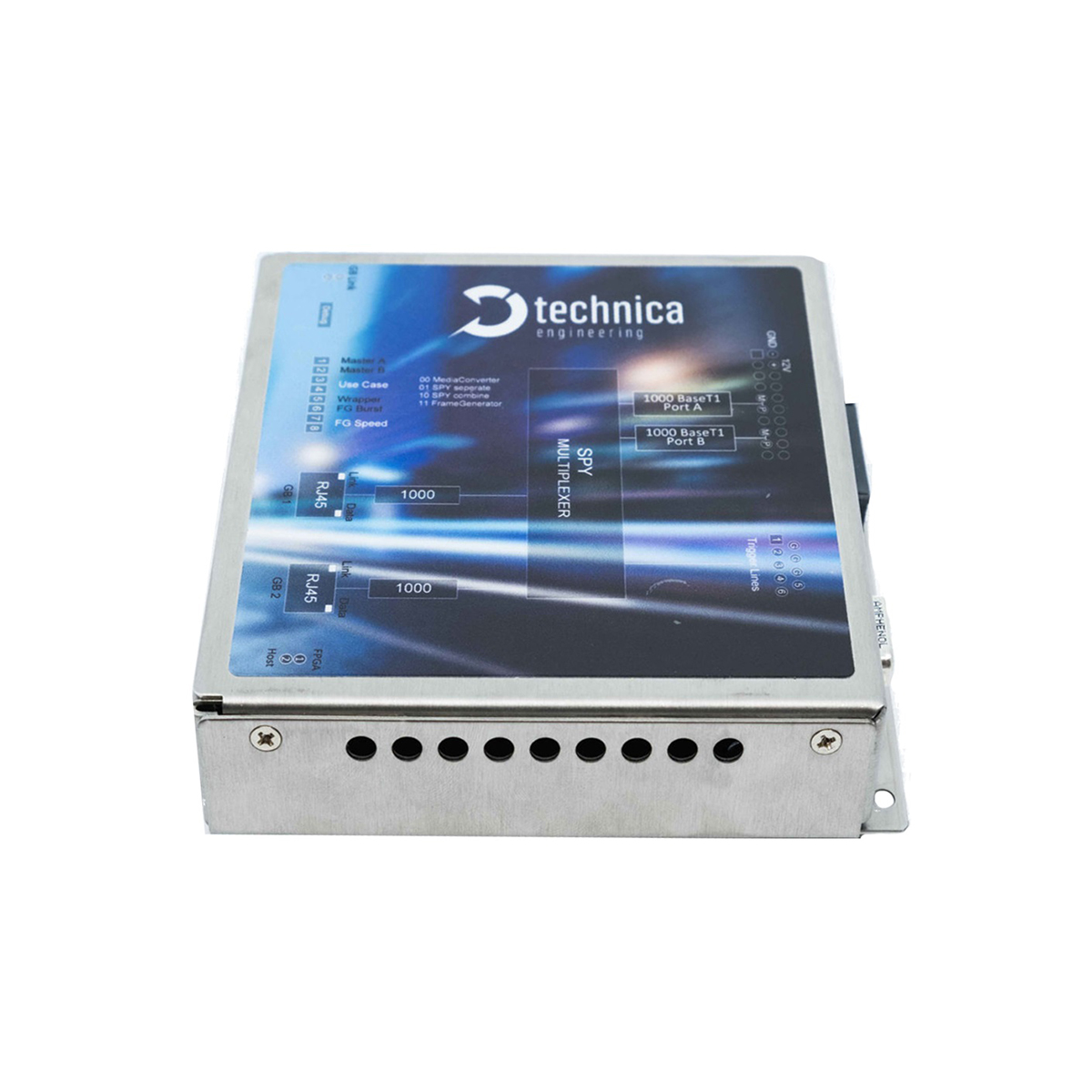

1000Base-T1 SPY Mini

能捕获1路1000Base-T1通信

Category:
Description描述

The 1000BASE-T1 SPY mini is the first device to allow the direct capture of 1000BASE-T1 (Automotive Gigabit Ethernet) traffic with optional timestamping with 40 ns resolution to Standard Gigabit Ethernet.
1000BASE-T1 SPY mini是第一款允许直接捕获1000BASE-T1(汽车千兆以太网)流量的设备,可选择时间戳,标准千兆以太网分辨率为40 ns。

A clock synchronization with the 100BASE-T1 SPY 12 port is provided via internal 802.1AS implementation.
通过内部802.1AS实现提供与100BASE-T1 SPY 12端口的时钟同步。

In logging mode the data Frames can be enhanced with additional information: the exact timestamp with 0.04 µs resolution and the bus port the data was originally received on. All data can be recorded on a PC or datalogger for detailed offline analysis.
在记录模式下,可以使用附加信息增强数据帧:具有0.04μs分辨率的精确时间戳和最初接收数据的总线端口。 所有数据都可以记录在PC或数据记录器上,以便进行详细的分析。

Different SPY modes are allowed:
允许不同的SPY模式:

1.Copying each direction of 1000BASE-T1 Traffic to one independent RJ45 interface
将1000BASE-T1 Traf fic的每个方向复制到一个独立的RJ45接口

2.Allowing copy of both directions of 1000BASE-T1 Traffic to only one RJ45 interface, assuming less than 500Mbps traffic bandwidth in each direction.
允许将1000BASE-T1 Traf fic的两个方向复制到一个RJ45接口,假设每个方向的流量带宽小于500Mbps。

3.Use as Dual Media Converter.
用作两个媒体转换器。

Features产品特点
  • 2 x 1000BASE-T1 Ports
    2个1000BASE-T1端口
  • 2x Gigabit Ethernet Ports
    2个千兆以太网端口
  • Timestamp with 0.04 µs resolution selectable
    可选择0.04μs分辨率的时间戳
  • Can be synchronized via 802.1AS with other devices, such as 100BASE-T1 SPY 12 Port
    可以通过802.1AS与其他设备同步,例如100BASE-T1 SPY 12端口
  • 6x 3V3 Bidirectional Trigger signals
    6x 3V3双向触发信号
  • DIP switches for easy configuration
    DIP开关,易于配置
  • Robust steel case
    坚固的钢壳
  • Power requirements: 12 Volt DC Nominal (8-16 Volts), 4 to 7 Watt
    功率要求:12伏直流标称(8-16伏),4至7瓦
  • Size: 120x118x28 mm
    尺寸:120x118x28毫米
