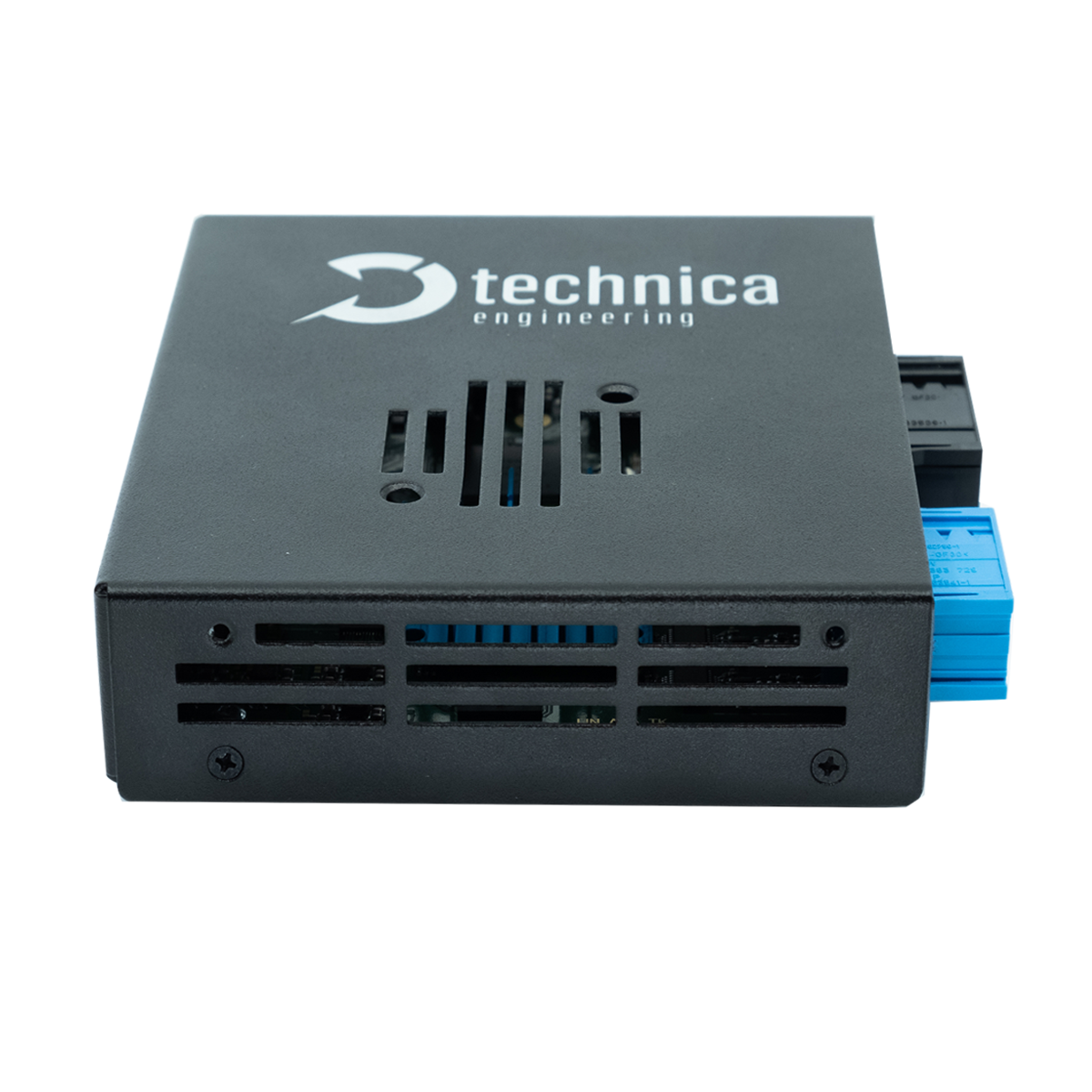

CM LIN Combo

能捕获10路LIN以及6路模拟信号的新一代Capture Module

While the cars of the future start using high-speed in-vehicle-network (IVN) technologies, for the Body-Domain, the classic analogue signals and the cost efficient LIN Bus are still important technologies.
虽然未来的汽车开始使用高速车载网络(IVN)技术,但对于Body-Domain而言,经典的模拟信号和具有成本效率的LIN总线仍然是重要的技术。

The CM LIN Combo enables automotive test engineers to reliably capture LIN traffic as well as differential and grounded analogue signals and send these within the PDUs of Ethernet MAC II frames via 100BASE-T1 or Standard Ethernet, with the corresponding time information of when they were captured.
CM LIN Combo使汽车测试工程师能够可靠地捕获LIN流量以及差分和接地模拟信号,并封装在以太网MAC II帧的PDU内,并带有硬件时间戳,通过100BASE-T1或标准以太网发送。

Several devices can be used on the same setup, whenever more interfaces are needed, and when other IVN technologies are present, the inbuilt- synchronization using 802.1AS allows for simultaneous use with the other “IVN2Eth Capture Modules”.
如果需要更多接口,可以在同一环境使用多个设备,可使用内置的802.1AS协议与其他“IVN2Eth捕获模块”同步。

Many additional features make this device appropriate for general-purpose testing.
该设备还有许多用于通用测试的其他功能

FEATURES
  • 10x LIN
  • 4x analogue inputs
  • 2x analogue inputs (galvanically isolated)

  • PLP Protocol (time stamp, ...)
    PLP协议
  • Configure easily via webserver
    通过网络服务器配置
  • Network Time Synchronization (802.1AS)– allows to synchronize multiple CAN Combos or any other “Capture Module”
  • Cascading and synchronization of multiple devices
    级联和同步多个设备
  • Source Timestamping with 40 ns resolution,40ns
    精度的时间戳
  • High Speed Startup
    高速启动
  • Startup Buffer
    启动缓存
  • Output Traffic Shaping
    输出流量整型

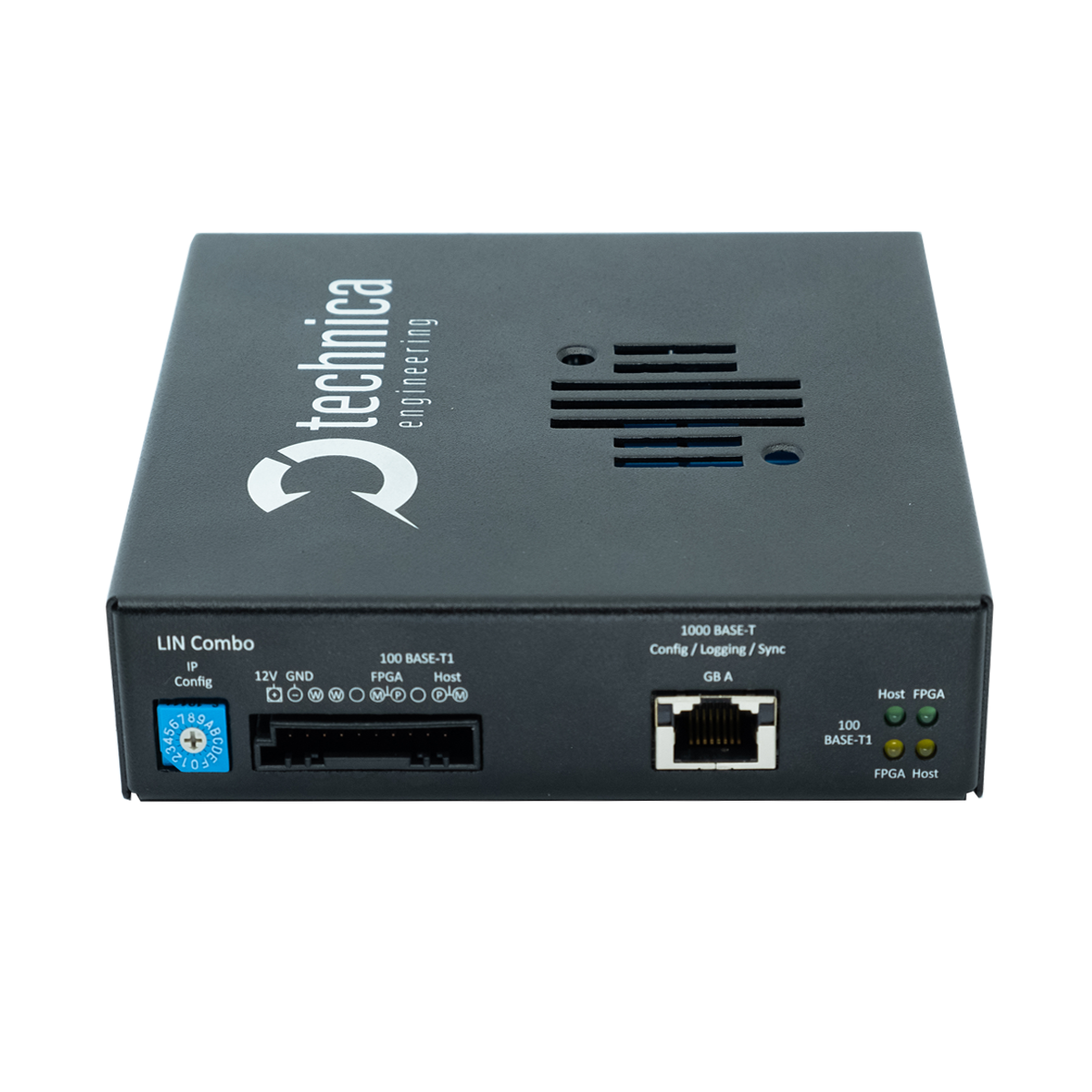

  • Rotary Switch for manual configuration of the device’s IP-Addresses (Gbit – RJ-45)
    用于人工设置设备的IP地址的的圆形开关
  • Wakeup capable
    可以唤醒
  • Extended Power Mode for Car integration
    扩展的电源管理功能用于车辆集成
  • Robust stainless-steel case
    坚固的不锈钢外壳
  • Size: 129 x 120 (134) x 32 mm
    大小:129 x 120 (134) x 32 毫米
