CCA CS1

将CCA 9002/9003 Removable SSD Storage数据以高达10Gbit/s的速度上传到服务器中

Category:

Description描述

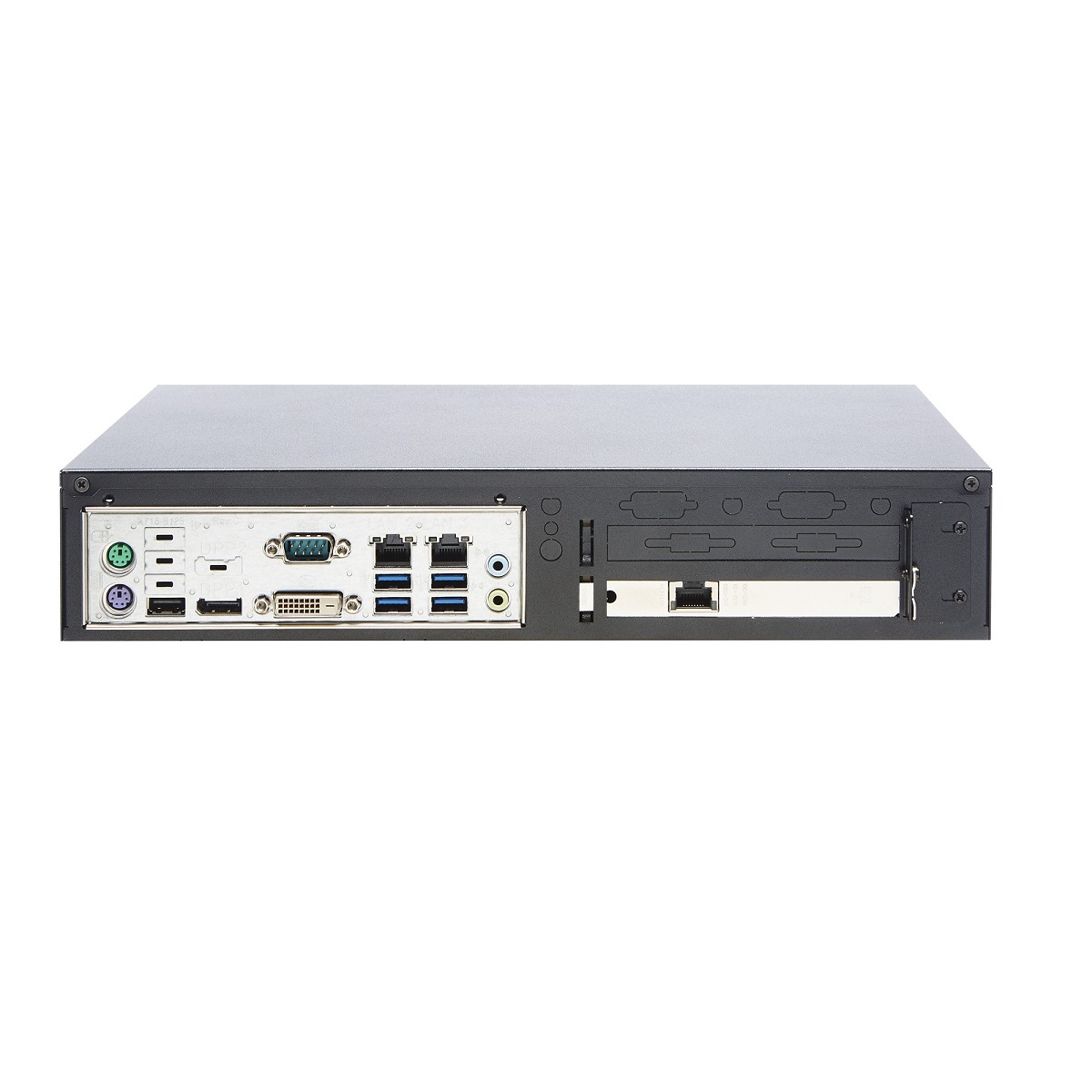

The Copy Station CCA CS1 synchronizes the content of a CCA 9002/9003 removable data storage with up to 10 Gbit/s to other media (NAS, server etc).
Copy Station CCA CS1将CCA 9002/9003可移动数据存储的内容与最高10 Gbit / s的内容同步到其他媒体(NAS,服务器等)。

The connections of the Copy Station are developed and implemented project-specifically.
Copy Station的连接是专门针对项目开发和实施的。

Stand-alone operation. Simple operation (plug & copy).
独立操作。 操作简单(即插即用)。

Feature产品特点

  • Interface for data import数据导入接口:
    • 1 x CCA removable data storage bay
  • Interfaces for data export数据导出接口:
    • 1 x 1 Gbit Ethernet RJ-45
    • 1 x 10 Gbit Ethernet RJ-45
    • 4 x USB 3.0 Host
  • Copy data to external storage拷贝数据到外部存储 :
    • 1x USB 3.0 drive → 120 MB/s maximum data transfer rate
    • 4x USB 3.0 drives simultaneously → 4 x ca. 100 MB/s maximum data transfer rate
    • Providing data as network drive (NAS functionality) → 700 MB/s maximum transfer rate
  • Configuration配置方式:
    • via web interface or display
  • Operation操作方式:
    • stand alone by control elements and 4-line display or web browser
